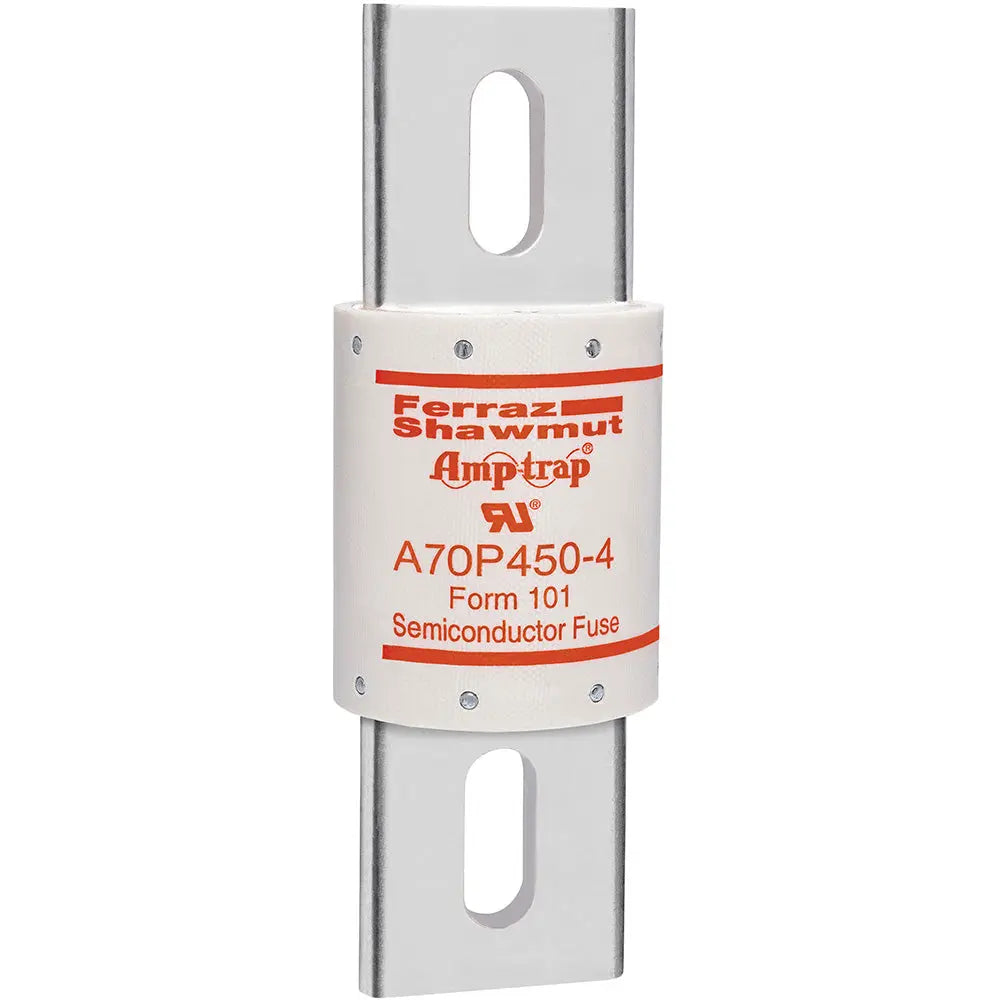

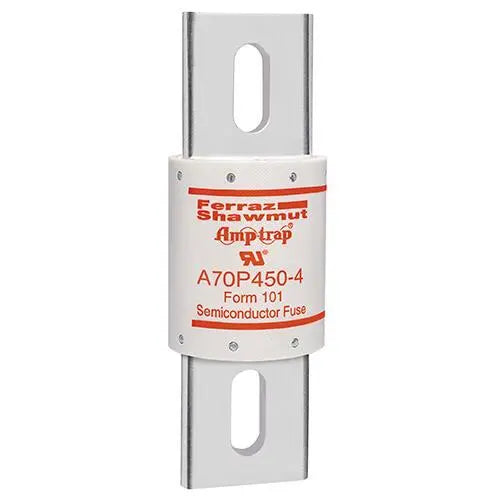

A70P450-4 - Mersen Amp-Trap High Speed Fuse 700V 450A Bolted Blade

A70P450-4

A70P450-4 is a high-speed Amp-Trap Form 101 fuse rated for 700VAC and 650VDC applications with 450-amp amperage capacity and bolted blade mounting.

The A70P450-4 is engineered for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters, and similar applications requiring low I2t performance and superior reliability. This semiconductor fuse features controlled arc voltage to reduce stress on circuit components during fuse clearing and minimizes damage to protected equipment during short circuit events. The bolted blade connection type and GMG insulating material provide robust construction for demanding industrial environments.

• Amperage Rating: 450 Amp
• Voltage Rating: 700VAC / 650VDC
• Series: Amp-Trap Form 101
• Mounting Type: Bolted Blade
• Connection Material: Silver-Plated Copper
• Body Material: GMG
• Interrupt Rating: 100,000 Amperes (100 kA)
• Low I2t Design
• Controlled Arc Voltage
• High-Speed Fuse Technology

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A70P450-4
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A70P
• Voltage : 700
• Amperage : 450
• AIC rating : 100kA@700V
• Connection : Bolt-In Blade
• Diameter : 2.5
• Barrels : 1

Product Data

• UPC : 782001947378
• GTIN : 00782001947378
• Country of Origin : Mexico
• Dimensions : x 7.09 in x
• Weight : 2
