Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

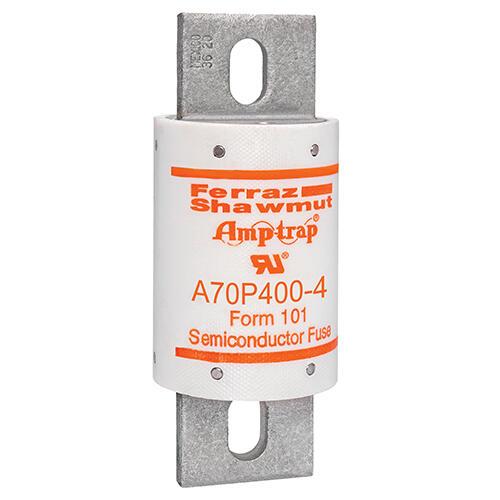

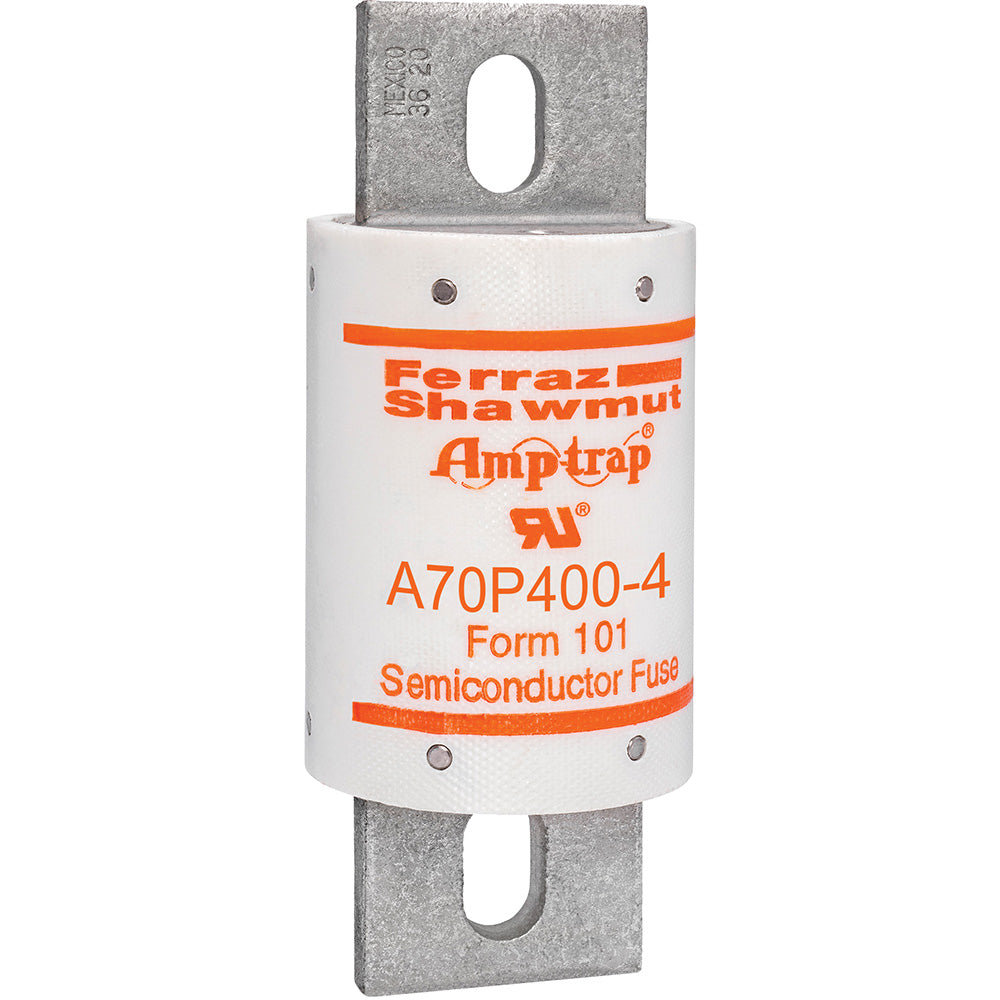

A70P400-4
A70P400-4 is a 400 amp high speed semiconductor fuse designed for protection of AC and DC drives, UPS systems, and motor starters.A70P400-4 features a 700 VAC and 650 VDC voltage rating with a 100 kA interrupt rating. It has a cylindrical body with bolted blade mounting, part of the Amp-Trap® Form 101 series, providing fast-acting current limiting protection for semiconductor devices.
- Key Specifications
- Amperage: 400 A
- Voltage Rating: 700 VAC / 650 VDC
- Interrupt Rating: 100 kA AC/DC
- Mounting Type: Bolted Blade
- Fuse Type: High Speed Semiconductor
- Series/Frame: Amp-Trap® A70P Form 101
- Body Style: Cylindrical
- Approvals: UL Listed
- Diameter: 2 inches
- Length: Approximately 5.09 inches
Specifications
- Part Number: A70P400-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70P
- Voltage : 700
- Amperage : 400
- AIC rating : 100kA@700V
- Connection : Bolt-In Blade
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 782001947347
- GTIN : 00782001947347
- Weight : 2
