Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70P350-4

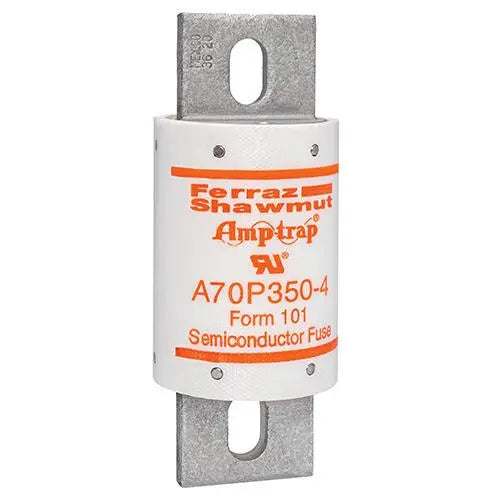

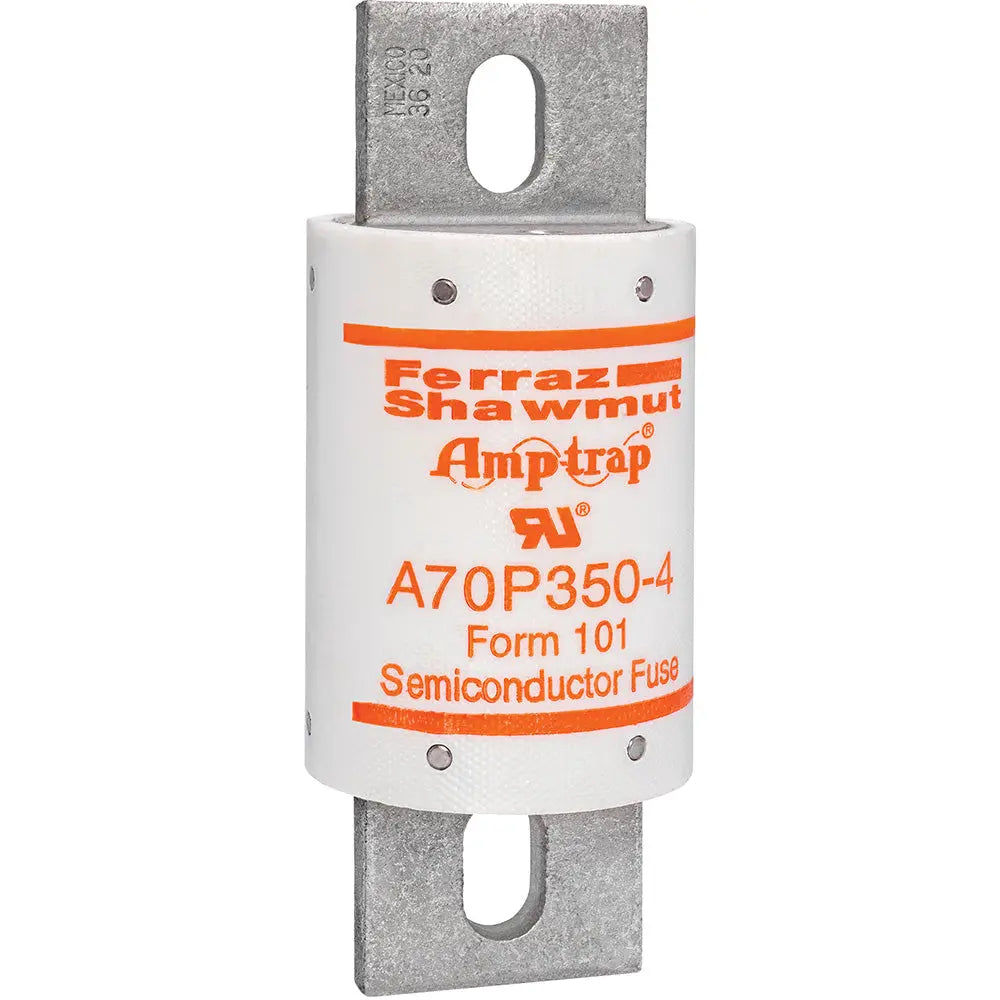

A70P350-4 is a high-speed Amp-Trap Form 101 fuse rated for 700VAC and 650VDC applications with 350-amp capacity and bolted blade mounting.
The A70P350-4 is engineered for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters, and similar applications requiring superior reliability and low I2t performance. This current-limiting fuse features a cylindrical GMG insulating body with tin-plated copper terminals, delivering controlled arc voltage to minimize stress on circuit components during fault clearing.
- Amperage Rating: 350 Amp
- Voltage Rating: 700VAC / 650VDC
- Series: Amp-Trap Form 101
- Mounting Type: Bolted Blade
- Body Material: GMG (Cylindrical)
- Terminal Material: Tin-Plated Copper
- Interrupt Rating: 100 kA
- Low I2t Design: Minimizes component damage on short circuit
- Controlled Arc Voltage: Reduces stress during fuse clearing
- UPC/EAN: 782001947330
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A70P350-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70P
- Voltage : 700
- Amperage : 350
- AIC rating : 100kA@700V
- Connection : Bolt-In Blade
- Diameter : 2
- Barrels : 1
Product Data
- UPC : 782001947330
- GTIN : 00782001947330
- Weight : 1
