Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A70P30-1

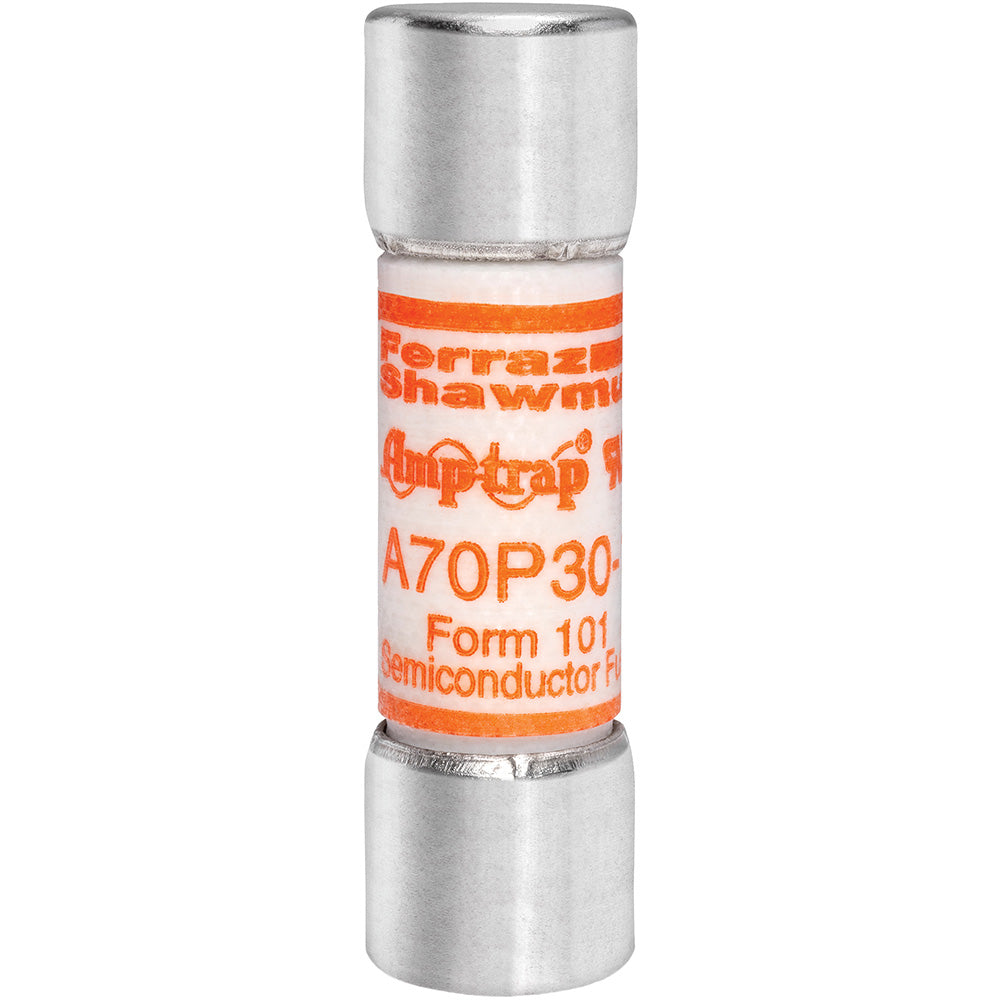

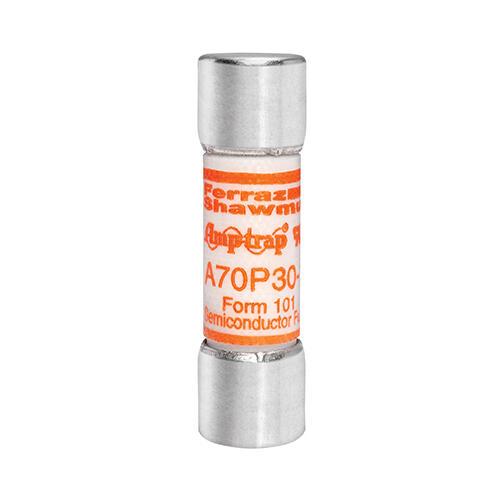

A70P30-1 is a high-speed semiconductor fuse designed for protection in AC and DC drive systems, UPS, and reduced voltage starters. This fuse features a 30A current rating, 700VAC and 650VDC voltage ratings, and is current-limiting for superior reliability and circuit protection. The A70P30-1 is part of the Amp-Trap A70P series, offering very fast-acting performance and a ferrule mounting style. It is UL recognized and tested to UL standards for both AC and DC applications, making it suitable for industrial, commercial, and residential use.
- Part Number: A70P30-1
- Manufacturer: Mersen (formerly Ferraz Shawmut)
- Amperage: 30A
- AC Voltage Rating: 700V
- DC Voltage Rating: 650V
- Interrupting Rating: 100,000 AIC (AC & DC)
- Mounting Type: Ferrule
- Series/Frame: A70P
- Application: Semiconductor, AC/DC Drives, UPS, Reduced Voltage Starters
- UL Recognized: Yes
- Physical Size: 0.56" x 2"
- Body Material: GMG
Specifications
- Part Number: A70P30-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70P
- Voltage : 700
- Amperage : 30
- AIC rating : 100kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 782001947125
- GTIN : 00782001947125
- Country of Origin : Mexico
- Dimensions : x 2 in x
- Weight : 0.04
