Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

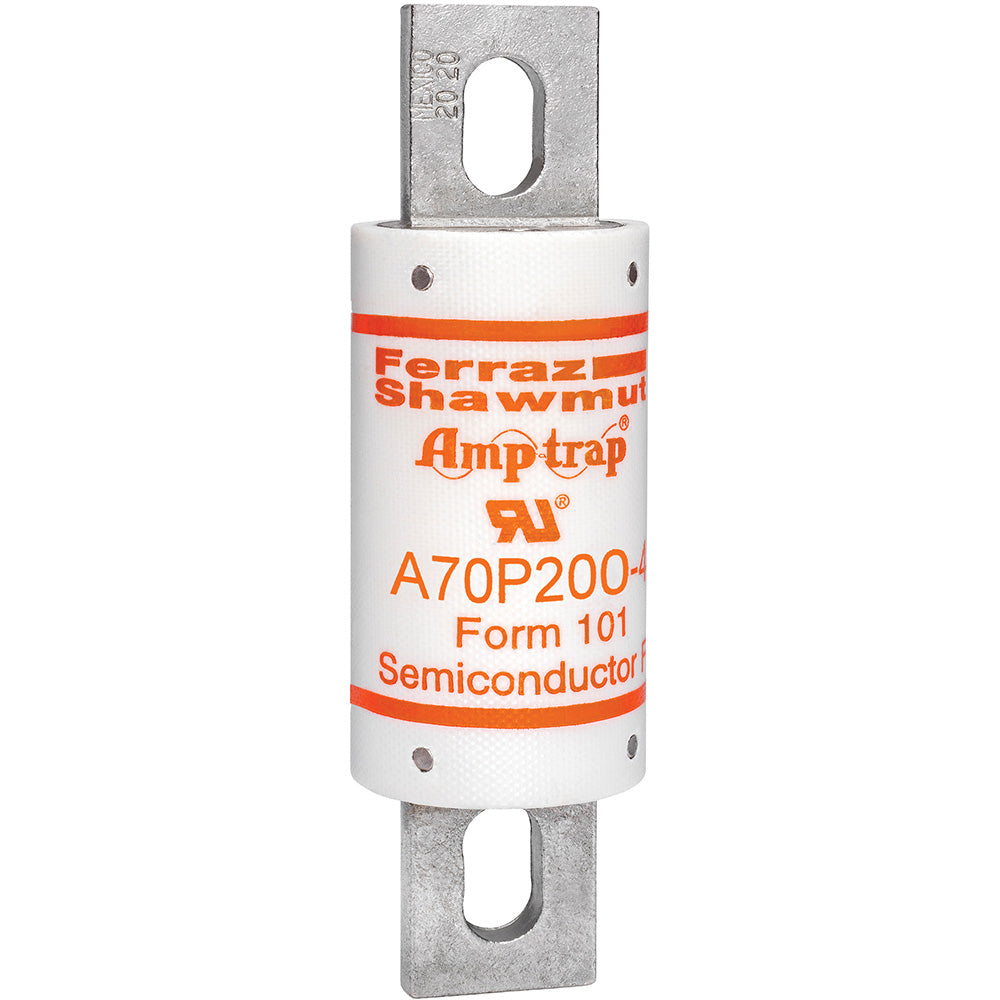

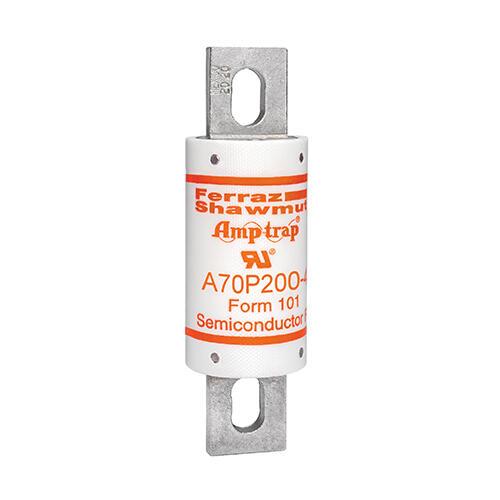

A70P200-4
A70P200-4 is a 200 amp, 700 volt semiconductor fast acting fuse from Eaton's A70P series designed for high voltage AC and DC drive protection.This fuse features a current limiting characteristic with a 100 kA interrupt rating at both 700 VAC and 650 VDC. It is suitable for protecting UPS systems, inverters, and reduced voltage motor starters. The fuse is stud mount type, UL recognized, RoHS compliant, and offers superior reliability with controlled arc voltage to reduce stress on circuit components.
- Amperage: 200 A
- Voltage Rating: 700 VAC, 650 VDC
- Interrupt Rating: 100 kA at 700 VAC and 650 VDC
- Characteristic: Fast Acting, Current Limiting
- Mounting Type: Stud Mount (1 Pole)
- Series: A70P (Amp-Trap Form 101)
- UL Recognized Component
- RoHS Compliant
- Physical Size: Approx. 1.5" x 5.09"
- Weight: Approx. 0.6 lbs
Specifications
- Part Number: A70P200-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70P
- Voltage : 700
- Amperage : 200
- AIC rating : 100kA@700V
- Connection : Bolt-In Blade
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 782001947309
- GTIN : 00782001947309
- Weight : 0.6
- Certification : UL
