Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

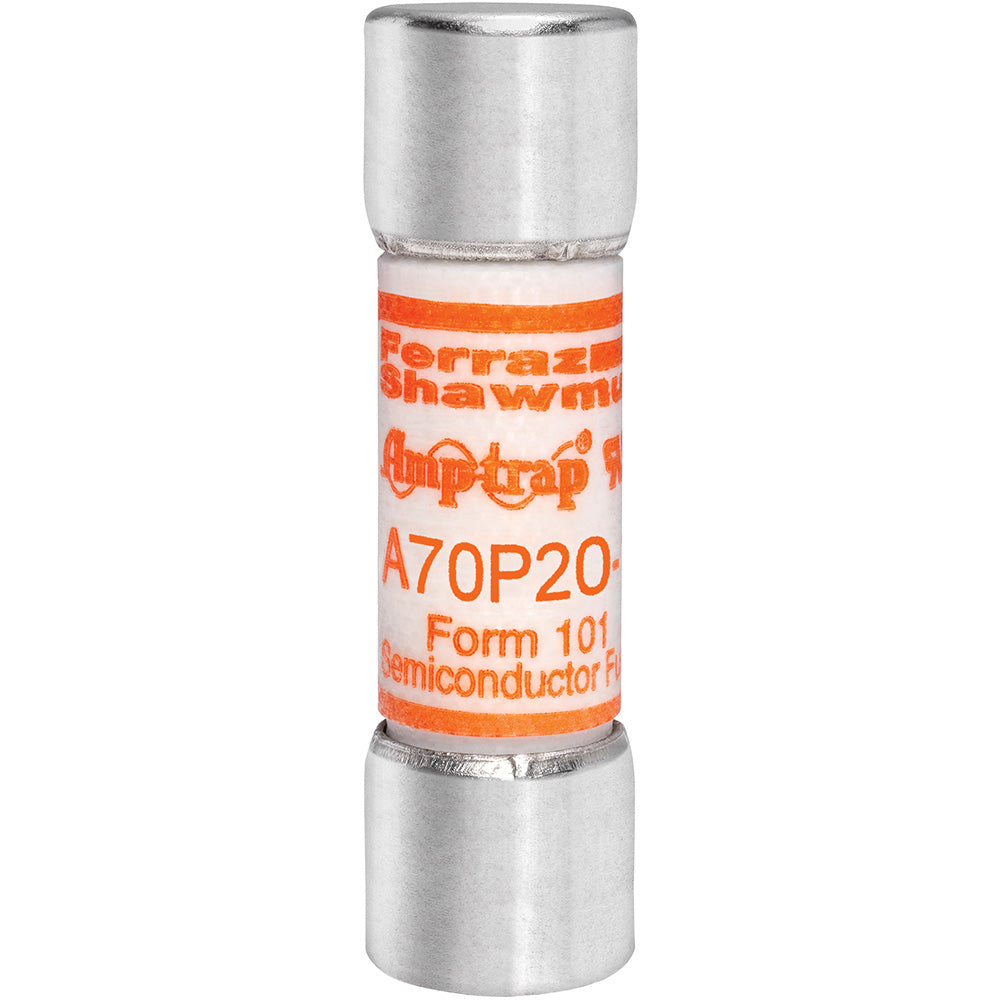

A70P20-1
A70P20-1 is a 20 amp, 700 volt semiconductor high speed fuse designed for protection of AC and DC drives and similar applications.A70P20-1 features a clip mounting type and a 1 pole configuration with a 50 kiloamp interrupt rating. It is part of the Amp-Trap® A70P series known for fast acting, current limiting protection that minimizes damage to sensitive components. This fuse supports up to 700VAC and 650VDC operation and is UL approved for reliable performance.
- Amperage: 20A
- Voltage Rating: 700VAC / 650VDC
- Poles: 1
- Mounting Type: Clip
- Interrupt Rating: 50kA
- Series: Amp-Trap® A70P Form 101
- Speed Type: High Speed (Fast Acting)
- Body Material: GMG
- Dimensions: 0.56" diameter x 2" length
- Certifications: UL Listed
Specifications
- Part Number: A70P20-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70P
- Voltage : 700
- Amperage : 20
- AIC rating : 100kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 782001947101
- GTIN : 00782001947101
- Weight : 5
