Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

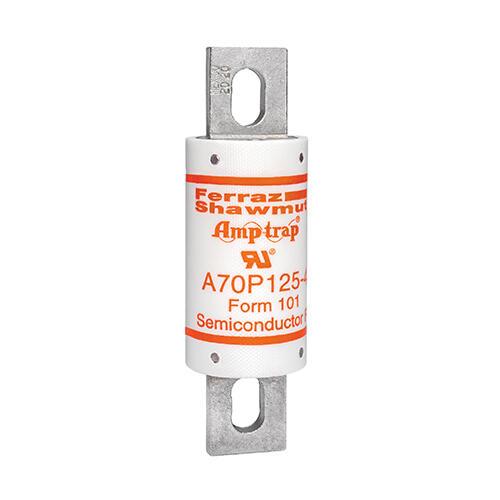

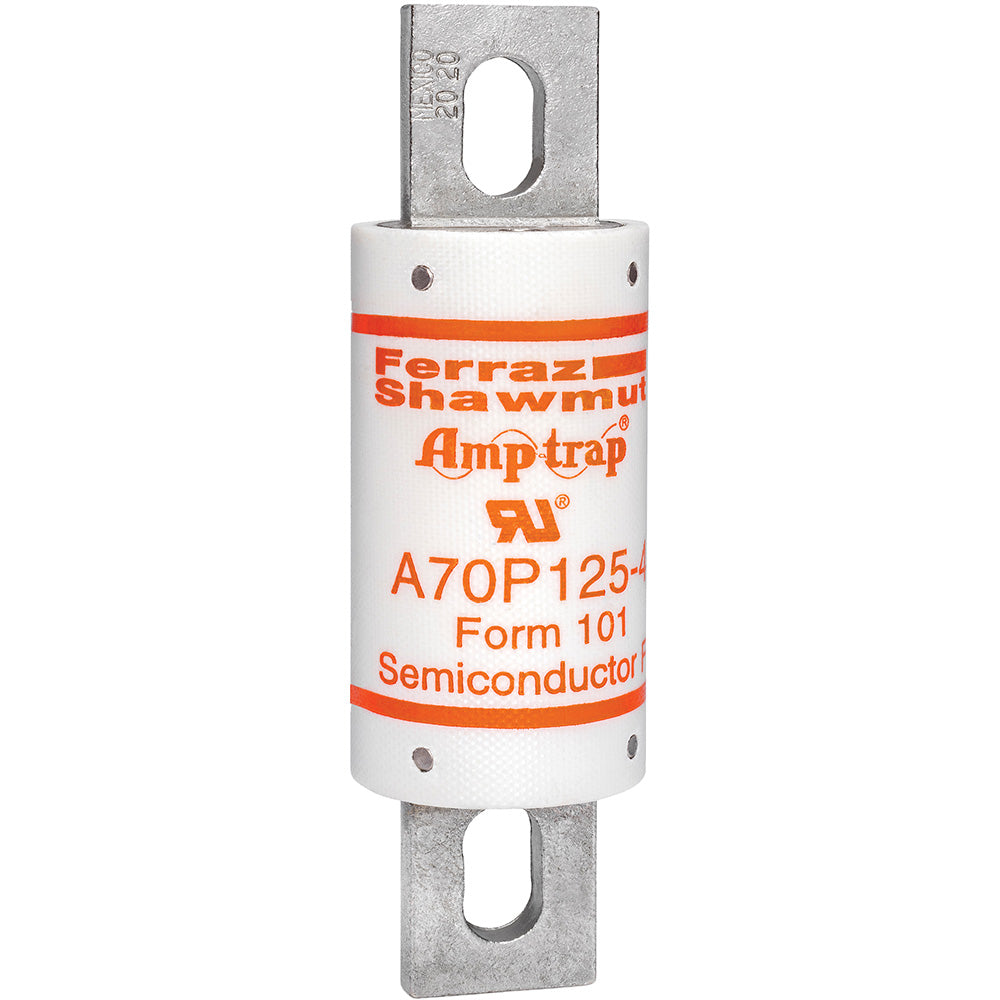

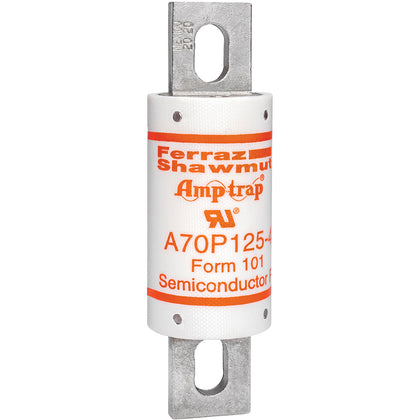

A70P125-4
A70P125-4 is a high speed semiconductor fuse from Mersen Ferraz Shawmut designed for protection in high voltage AC and DC applications.A70P125-4 Amp-Trap® Form 101 fuse features a 125 amp rating and 700 VAC / 650 VDC voltage rating with a bolted blade mounting type. It offers low I2t to minimize damage to protected components and controlled arc voltage to reduce stress during fuse clearing. This fuse is UL approved and suitable for use in DC drives, UPS systems, inverters, and reduced voltage motor starters.
- Amperage: 125 A
- Voltage: 700 VAC / 650 VDC
- Series: A70P (Amp-Trap® Form 101)
- Mounting Type: Bolted Blade
- Interrupt Rating: 100 kA (AC/DC)
- Body Type: Cylindrical
- Fuse Type: Semiconductor, High Speed
- Approvals: UL Listed
- Dimensions: Approx. 5.09 inch length, 1.5 inch diameter
- Non-Indicating
Specifications
- Part Number: A70P125-4
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70P
- Voltage : 700
- Amperage : 125
- AIC rating : 100kA@700V
- Connection : Bolt-In Blade
- Diameter : 1.5
- Barrels : 1
Product Data
- UPC : 782001947279
- GTIN : 00782001947279
- Country of Origin : Mexico
- Dimensions : x 5.09 in x
- Weight : 5
