Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

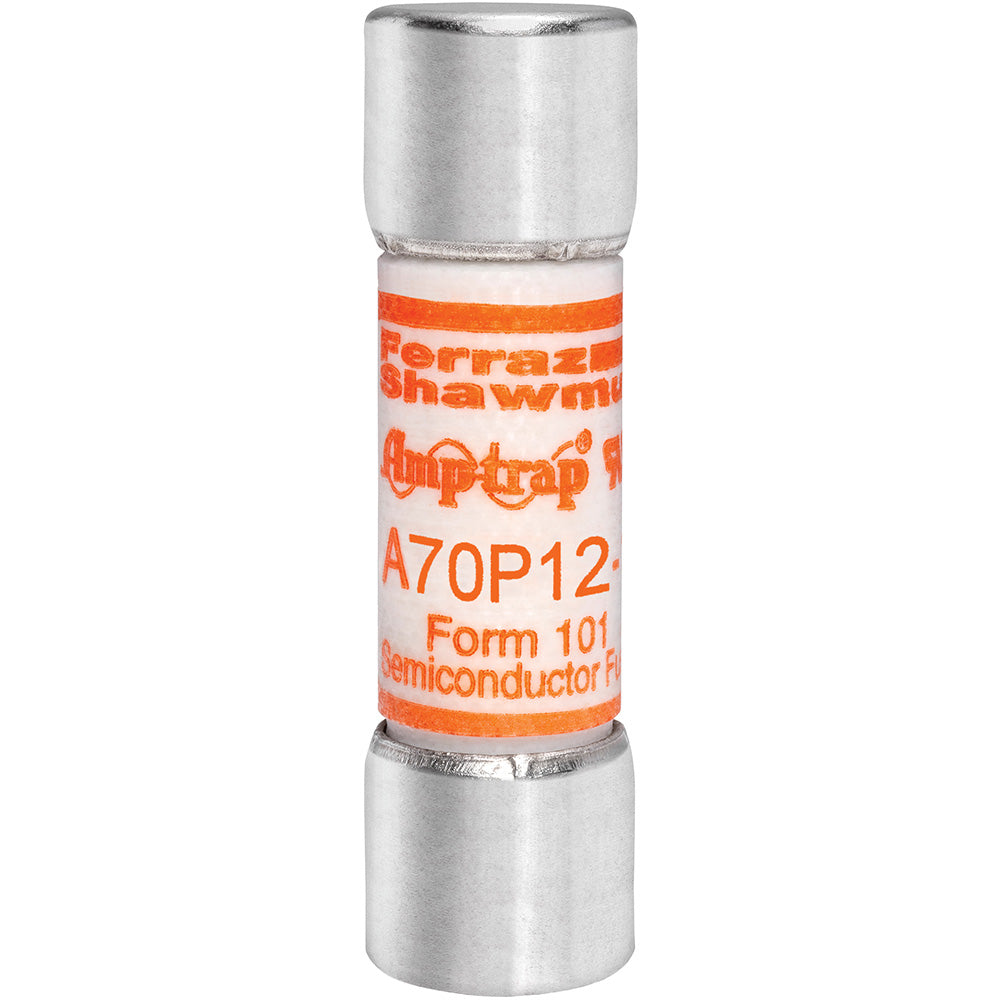

A70P12-1
A70P12-1 is a 12 Amp, 700 Volt AC semiconductor fuse from Eaton designed for very fast acting current limiting protection.This fuse provides superior reliability with a controlled arc voltage that reduces stress to circuit components during fuse clearing. It is rated for 700V AC and 650V DC with an interrupting rating of 100,000 AIC for both AC and DC applications. The fuse is ideal for protecting DC drives, UPS systems, inverters, and reduced voltage starters. It is UL Recognized and meets rigorous standards for performance and safety.
- Amperage: 12 Amps
- Voltage Rating: 700V AC, 650V DC
- Poles: 1
- Fuse Type: Semiconductor, Very Fast Acting
- Interrupting Rating: 100,000 AIC (AC and DC)
- Current Limiting
- Physical Size: 0.56" x 2"
- UL Recognized Component (UL File E60314)
- Applications: DC drives, UPS, inverters, reduced voltage starters
- Series: Amp-Trap® A70P
Specifications
- Part Number: A70P12-1
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70P
- Voltage : 700
- Amperage : 12
- AIC rating : 100kA@700V
- Connection : Ferrule
- Diameter : 0.56
- Barrels : 1
Product Data
- UPC : 78200194694
- GTIN : 00782001946944
- Weight : 0.08
