Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

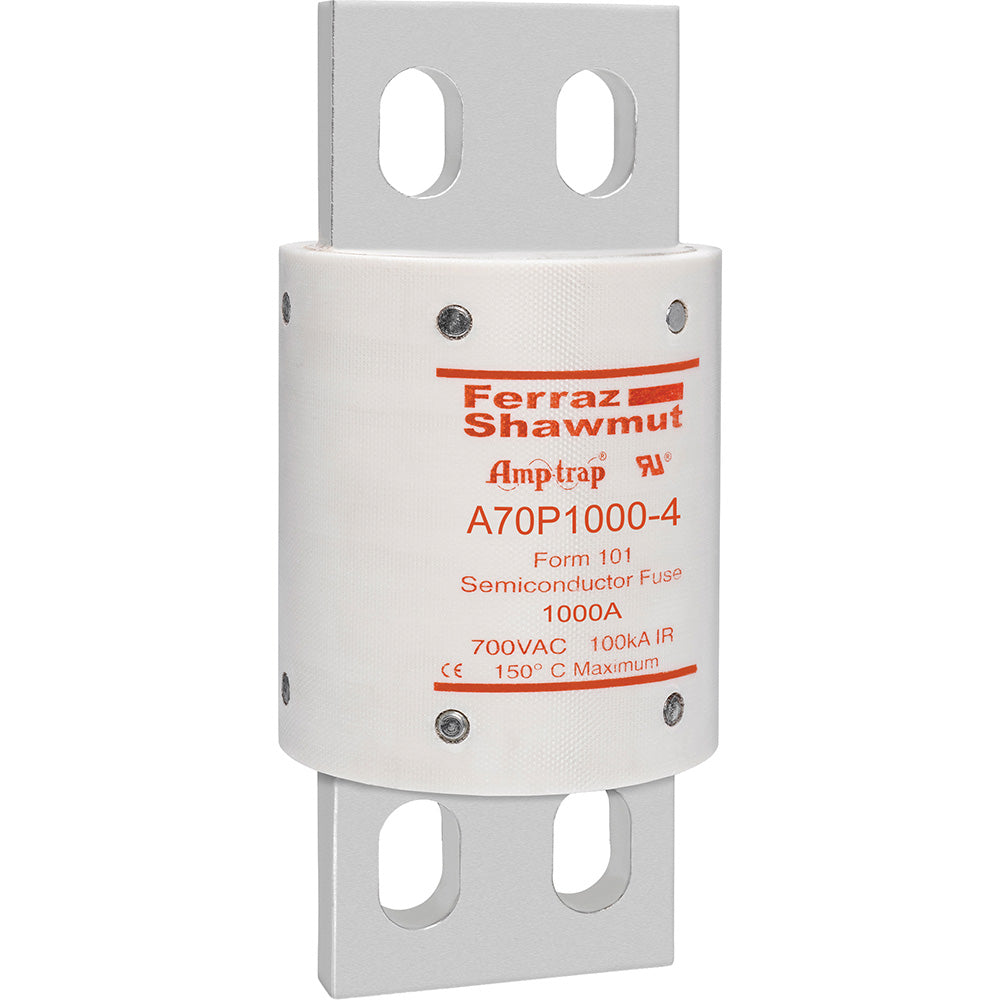

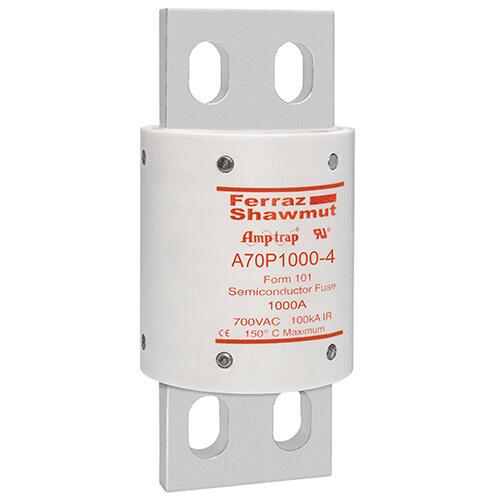

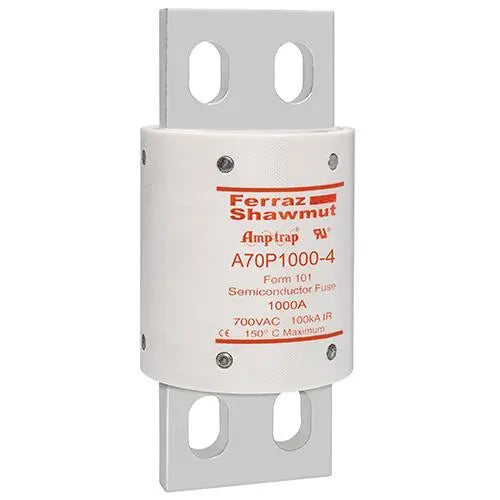

A70P1000-4
A70P1000-4 is a high speed semiconductor fuse designed for demanding electrical protection applications. This fuse provides reliable circuit protection for higher voltage AC and DC drives, UPS systems, and reduced voltage motor starters.Engineered with a cylindrical body and bolted blade connection, the A70P1000-4 offers superior reliability and low I2t to minimize damage to protected components during short circuits. Its controlled arc voltage reduces stress on circuit components during fuse clearing, making it ideal for critical industrial and commercial installations.
- Amperage Rating: 1000A
- Voltage Rating: 700V AC, 650V DC
- Mounting Type: Bolted Blade
- Interrupt Rating: 100kA
- Series/Frame: A70P Amp-Trap®
- Body/Insulating Material: GMG
- Connection/Terminal Material: Silver-Plated Copper
- Application: Semiconductor, UPS, Motor Starters
Specifications
- Part Number: A70P1000-4
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A70P
- Voltage : 700
- Amperage : 1000
- AIC rating : 100kA@700V
- Connection : Bolt-In Blade
- Diameter : 3.5
- Barrels : 1
Product Data
- UPC : 782001947392
- GTIN : 00782001947392
- Weight : 4
