Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A6Y6-1R

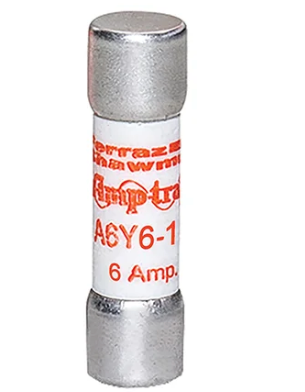

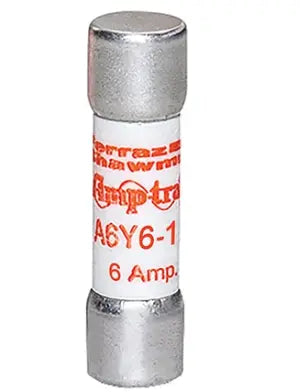

A6Y6-1R is a Form 600 fuse designed for reliable circuit protection in both AC and DC applications. This fuse provides a high degree of current limitation and is suitable for special fusing requirements where robust performance is needed. The A6Y6-1R fuse features a clip mounting style for easy installation and replacement. It is rated for 6 amps and offers a maximum AC voltage rating of 600 volts and a DC voltage rating of 500 volts. The fuse delivers a high interrupting capacity, making it suitable for demanding electrical environments.
- Part Number: A6Y6-1R
- Manufacturer: Eaton
- Amperage: 6A
- AC Voltage Rating: 600VAC
- DC Voltage Rating: 500VDC
- Interrupt Rating: 200kA at 250VAC, 100kA at 500VDC
- Mounting Type: Clip
- Series/Frame: Form 600
- Application: Special Purpose Fuse
- Current Limiting: Yes
- Time Delay: Yes
- Class: RK1
Specifications
- Part Number: A6Y6-1R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap
- Type : A6Y
- Voltage : 500
- Amperage : 6
- AIC rating : 200kA@500V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : K
- Barrels : 1
Product Data
- UPC : 78200190223
- GTIN : 00782001902230
- Weight : 0.08
