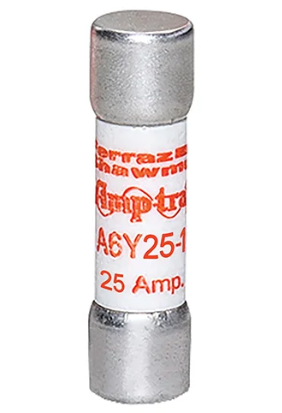

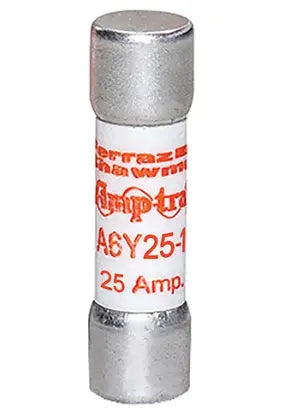

A6Y25-1 - Ferraz Shawmut 25A 600VAC 500VDC Type 1R Amp-Trap Cartridge Fuse

A6Y25-1

A6Y25-1 is a 25 amp, 600VAC/500VDC Type 1R Amp-Trap cartridge fuse designed for reliable circuit protection.This fuse features a single-barrel design with a 13/16 inch diameter and a 5 inch length, providing a high interrupt rating of 200kA at 600VAC and 100kA at 500VDC. It is part of the Form 600 series, known for current-limiting performance in both AC and DC applications. The fuse is UL Recognized (File #E60314) and mounts via clip for secure installation.

Key Specifications
• Amperage: 25A
• Voltage Rating AC: 600VAC
• Voltage Rating DC: 500VDC
• Interrupt Rating: 200kA AC, 100kA DC
• Type: 1R
• Mounting Type: Clip
• Body Style: Cartridge Fuse
• Diameter: 13/16 inch
• Length: 5 inches
• Series: Form 600
• UL Recognized Component (File #E60314)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A6Y25-1
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap
• Type : A6Y
• Voltage : 600
• Amperage : 25
• AIC rating : 200kA@600V
• Connection : Ferrule
• Diameter : 1.5
• Class Rating : K
• Barrels : 1



Product Data

• UPC : 78200190242
• GTIN : 00782001902421
• Weight : 1 lb
