Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage
Description
A6Y10

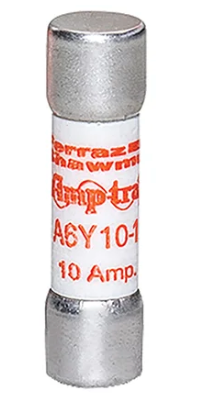

A6Y10-1 is a Ferraz Shawmut Amp-Trap low voltage fuse rated for 10 amperes and 600 volts AC/500 volts DC.This Type 1 fuse features a cylindrical body with a diameter of approximately 0.81 inches and provides high current limitation for both AC and DC applications. It has an interrupt rating of up to 100kA AC and 200kA DC, suitable for protecting electrical circuits in industrial and commercial environments. The fuse is UL Recognized (File #E60314) and designed for panel mounting.
- Amperage: 10A
- Voltage Rating: 600VAC / 500VDC
- Fuse Type: Amp-Trap Type 1
- Body Diameter: 0.81 inches
- Interrupt Rating: 100kA AC / 200kA DC
- Mounting Type: Panel Mount
- Series: Form 600
- Certification: UL Recognized Component (File #E60314)
- Poles: 1 Barrel
- Body Style: Cylindrical
Specifications
- Part Number: A6Y10
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : A6Y
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Connection : Ferrule
- Diameter : 0.81
- Class Rating : K
- Barrels : 1
Product Data
- Weight : 5 lb
