Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

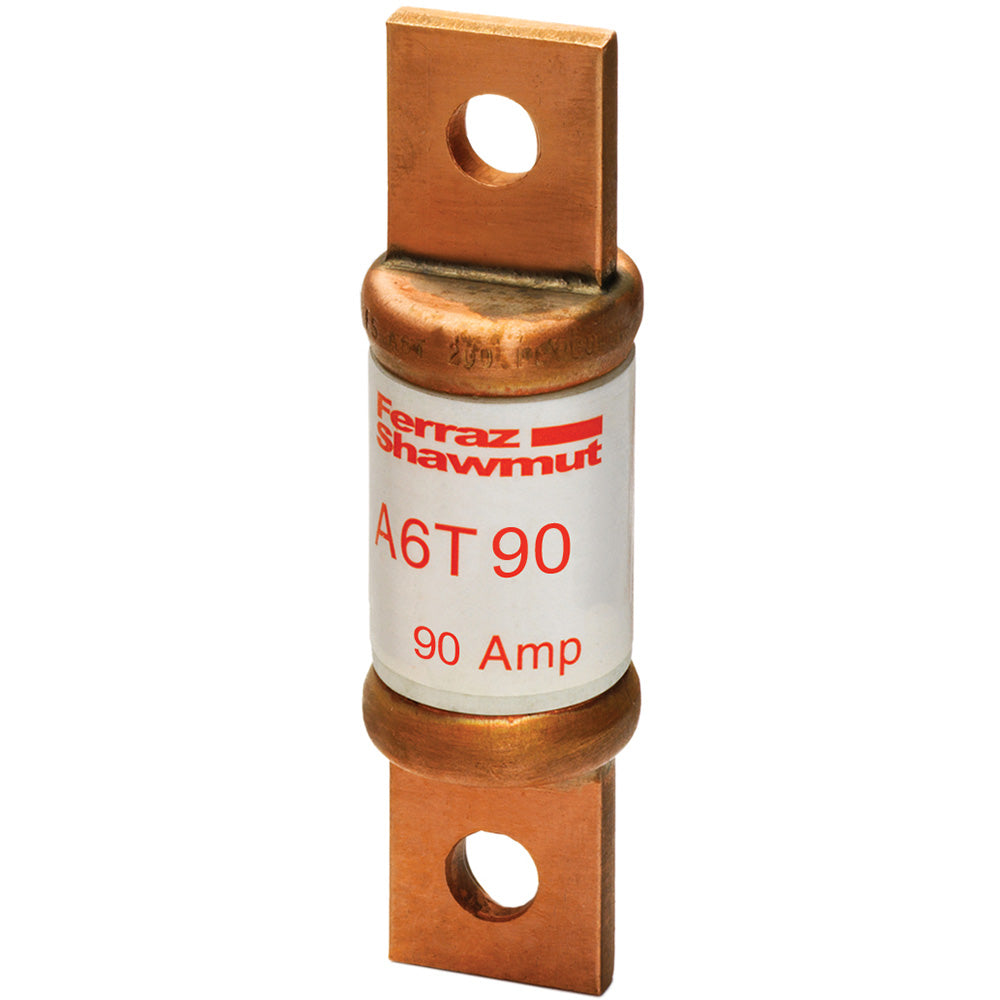

A6T90
A6T90 is a Mersen Class T fast-acting fuse designed for reliable circuit protection with a 90 amp rating and 600VAC/300VDC voltage capacity.A6T90 features a Blade Amp-Trap® design providing current limiting protection with a high interrupt rating of 200kA. It is UL Class T certified and suitable for low voltage applications requiring fast-acting fuse performance.
- Key Specifications
- Amperage: 90 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200,000 A (200 kA)
- Fuse Class: Class T
- Speed: Fast-Acting
- Design: Blade Amp-Trap®
- Mounting Type: Inline/Holder
- Certifications: UL 248/248-15, CSA C22.2
- Dimensions: Approximately 2.95 inch length, 0.82 inch diameter
- Part Number: A6T90
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 90
- AIC rating : 200kA@600V
- Diameter : 0.82
- Class Rating : T
- Barrels : 1
- Clip Center : 2.35
- UPC : 782001891428
- GTIN : 00782001891428
- Weight : 0.11
