Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

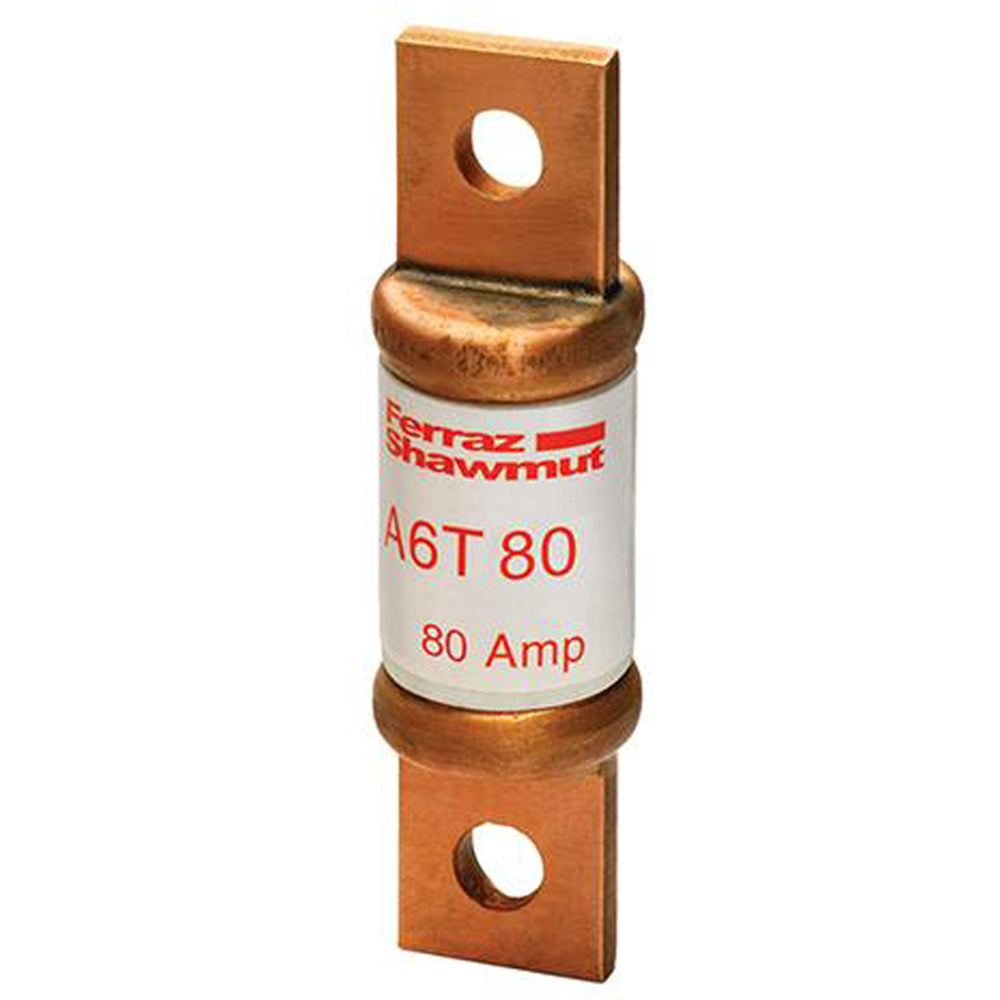

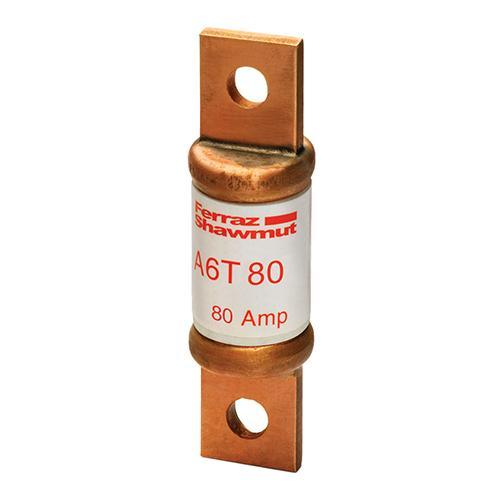

A6T80
A6T80 is a Mersen Class T fast-acting, current limiting low voltage power fuse designed for superior circuit protection in demanding applications.
This fuse features a compact, cylindrical GMG (glass melamine) body for dimensional stability, with blade terminals for secure bolted connections. It delivers high current limitation and a fast response to overloads, preventing the substitution of fuses with lower ratings. The A6T80 is UL listed to standard 248-15 (File E2137) and CSA certified to C22.2 no. 248.15, ensuring compliance with North American safety standards.
-
Key Specifications
- Amperage: 80 A
- Voltage: 600 VAC / 300 VDC
- Poles: Single
- Mounting Type: Bolted (blade terminal)
- Interrupt Rating: 200 kA
- Series/Frame: A6T (Class T)
- Trip Unit: Fast-acting
- Certifications: UL listed, CSA certified, DC listed
- Body Material: GMG (glass melamine)
- Terminal Material: Copper
- Dimensions: 0.82" dia. x 2.95" length
- Weight: 47.16 g (0.11 lb)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A6T80
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 80
- AIC rating : 200kA@600V
- Diameter : 0.82
- Class Rating : T
- Barrels : 1
- Clip Center : 2.35
Product Data
- UPC : 782001891411
- GTIN : 00782001891411
- Weight : 0.11
