Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6T600

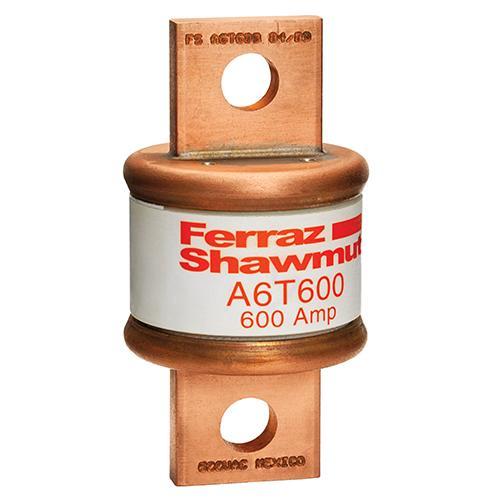

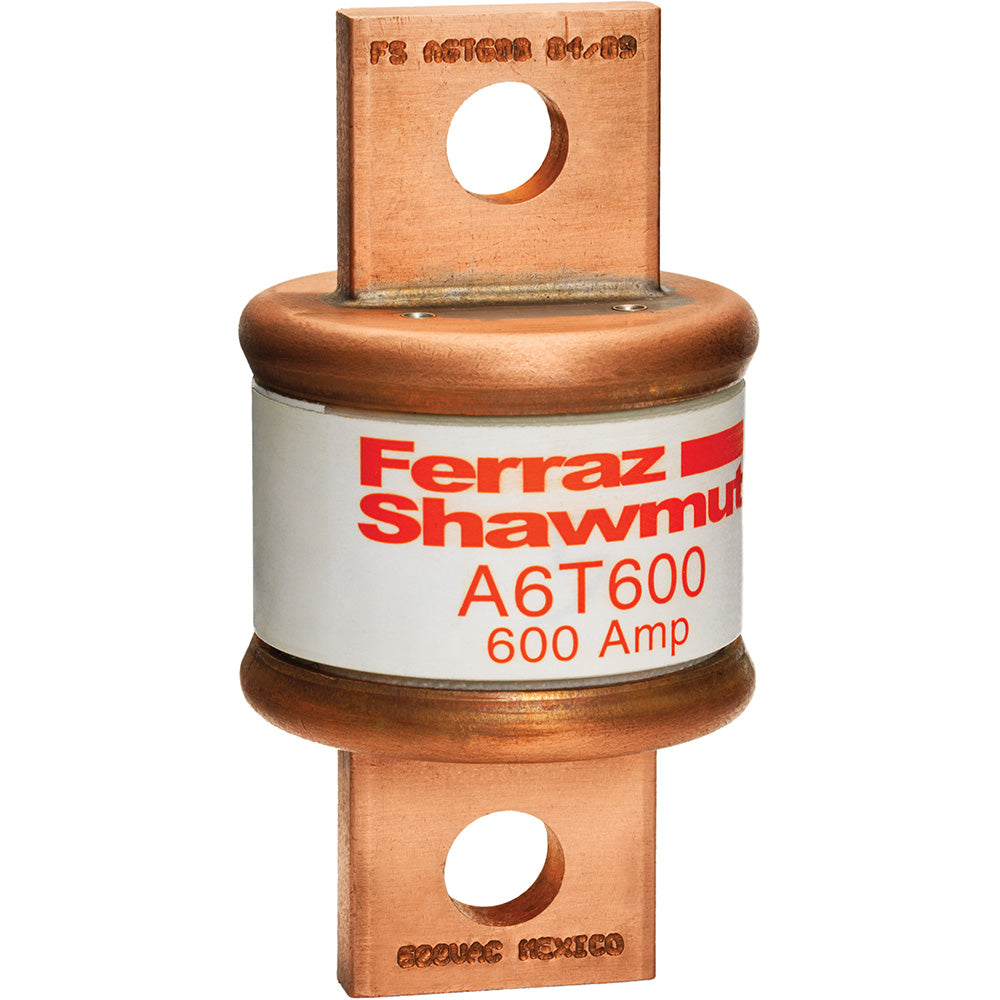

A6T600 is a Mersen Class T fast-acting fuse designed for high-current protection in industrial and commercial power distribution systems. This fuse provides reliable circuit protection with a compact physical size and high current-limiting capability. The A6T600 fuse is rated for 600 amps at 600 volts AC and 300 volts DC, making it suitable for a wide range of electrical applications. It features an extremely current-limiting design for low peak let-thru, ensuring fast response and minimal damage during fault conditions. The fuse is UL 248/248-15 and CSA C22.2 certified for safety and performance.
- Part Number: A6T600
- Manufacturer: Mersen
- Amperage Rating: 600A
- Voltage Rating: 600V AC / 300V DC
- Interrupt Rating: 200,000A AC / 100,000A DC
- Fuse Class: Class T
- Speed: Fast-Acting
- Physical Size: 2.6" x 3.98"
- Diameter: 2.06"
- Certifications: UL 248/248-15, CSA C22.2
- Mounting Type: Bolt-On
- Series/Frame: A6T
Specifications
- Part Number: A6T600
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 600
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : midget
- Barrels : 1
- Clip Center : 2.95
Product Data
- UPC : 078200189156
- GTIN : 00782001891565
- Weight : 3
