Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6T60

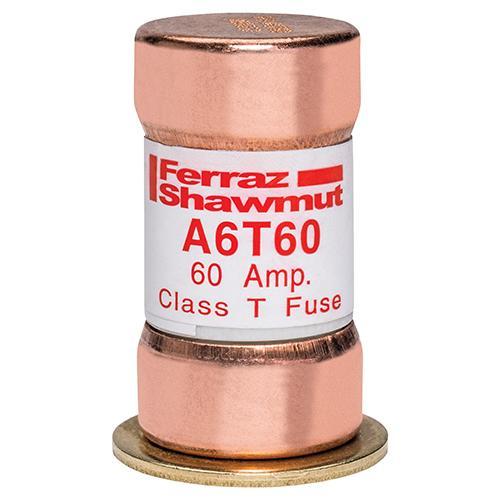

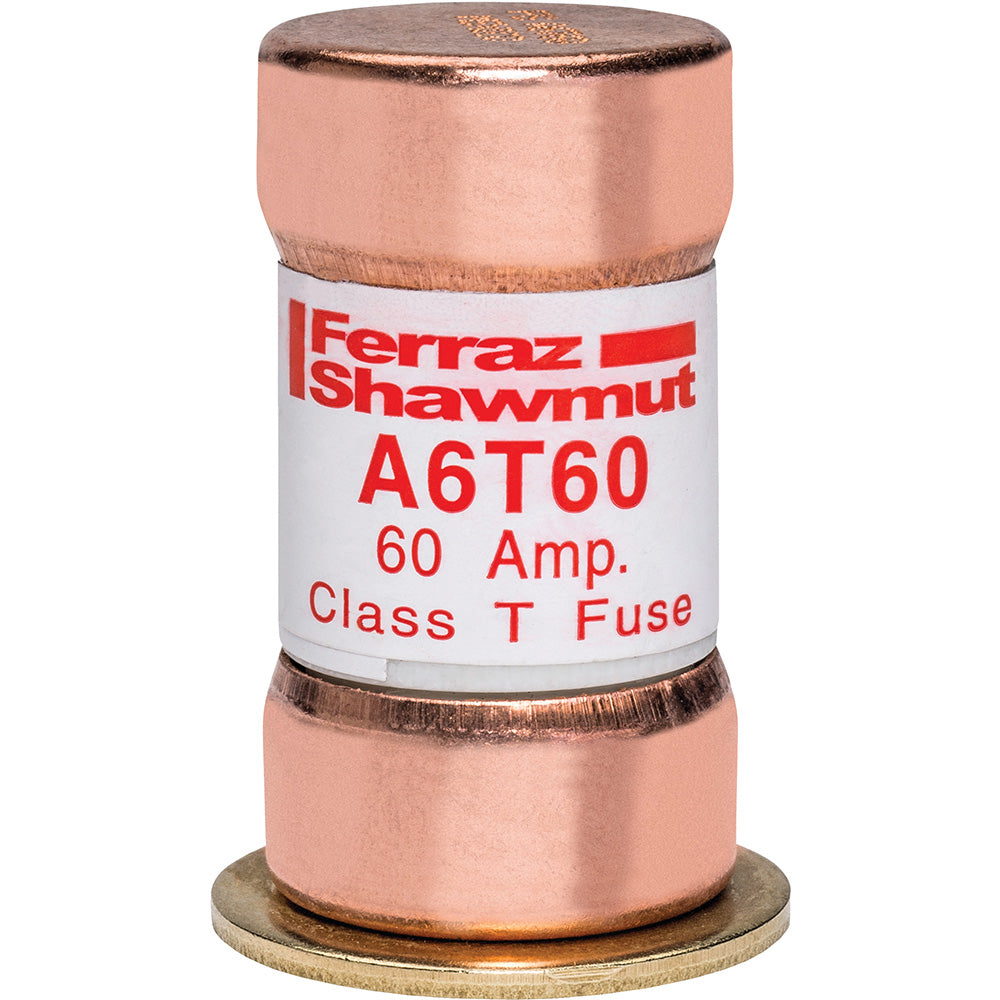

A6T60 is a Mersen Class T fast-acting fuse designed for low voltage applications with a 60 amp rating and 600 VAC/300 VDC voltage capacity.This fuse features a cylindrical Amp-Trap® design with ferrule terminals, providing extremely current-limiting protection and high interrupt rating suitable for industrial and commercial electrical systems. It is UL listed and CSA certified, rated for 200 kA interrupt capacity at 600 VAC, and constructed with GMG insulating material for durability. The fuse is clip-mounted and designed for fast-acting trip characteristics to protect sensitive equipment.
- Amperage: 60 A
- Voltage: 600 VAC / 300 VDC
- Fuse Class: Class T
- Trip Characteristic: Fast-Acting
- Interrupt Rating: 200 kA at 600 VAC
- Terminal Type: Ferrule
- Mounting Type: Clip
- Body Material: GMG Insulating Material
- Certifications: UL Listed, CSA Certified
- Fuse Series: Amp-Trap®
- Dimensions: 0.81 in diameter x 1.57 in length
Specifications
- Part Number: A6T60
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 782001891114
- GTIN : 00782001891114
- Weight : 5
