Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6T6

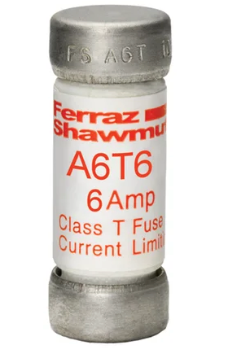

A6T6 is a Mersen Class T fast acting fuse rated for 6 amps and 600 volts AC, designed for current limiting protection.This fuse features a compact cylindrical body with a 0.57 inch diameter and 1.5 inch length, providing high interrupting ratings of 200,000 AIC AC and 100,000 AIC DC. It is UL listed to standard 248-15 and CSA certified, suitable for low voltage applications requiring fast response and reliable protection.
- Key Specifications
- Amperage: 6 Amps
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: T
- Fast Acting
- Interrupting Rating: 200,000 AIC AC / 100,000 AIC DC
- Dimensions: 0.57" diameter x 1.5" length
- Mounting Type: Cylindrical body fuse
- UL Listed (UL 248-15), CSA Certified
- Current Limiting
- Blade stamped catalog numbers for permanent ID
Specifications
- Part Number: A6T6
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Diameter : 0.57
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 782001891022
- GTIN : 00782001891022
- Weight : 0.03
