A6T500 - Mersen 500A 600V Class T Fast Acting Current Limiting Fuse

A6T500

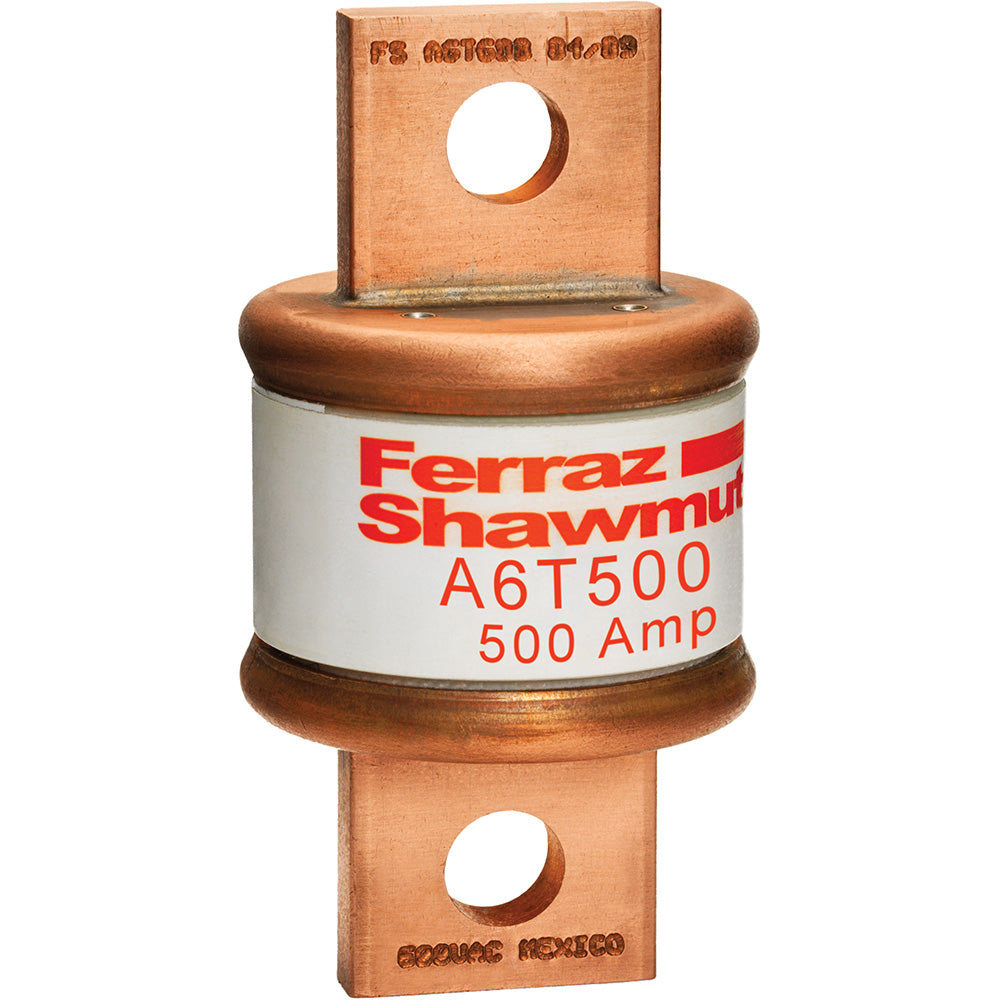

A6T500 is a Mersen Class T fast acting fuse rated for 500 amps and 600 volts AC, designed for high current limiting protection.This fuse features a compact cylindrical body measuring 2.06" x 3.98", with an AC interrupt rating of 200,000 AIC and DC interrupt rating of 100,000 AIC. It is UL listed to standard 248-15 and CSA certified to C22.2 No. 248.15, ensuring reliable performance and safety compliance. The unique dimensions prevent replacement by other fuse classes, and the blade stamped catalog numbers provide permanent identification.

Key Specifications
• Amperage: 500 Amps
• Voltage Rating: 600 Volts AC / 300 Volts DC
• Fuse Class: T
• Interrupt Rating: 200,000 AIC AC / 100,000 AIC DC
• Fast Acting, Current Limiting
• Physical Size: 2.06" Diameter x 3.98" Length
• UL Listed (UL 248-15, UL File E2137)
• CSA Certified (C22.2 No. 248.15)
• Blade Stamped Catalog Numbers
• Small Physical Size for Design Flexibility

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A6T500
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A6T
• Type : A6T
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Diameter : 2.06
• Class Rating : T
• Barrels : 1
• Clip Center : 2.95

Product Data

• UPC : 078200189155
• GTIN : 00782001891558
• Weight : 3
