Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

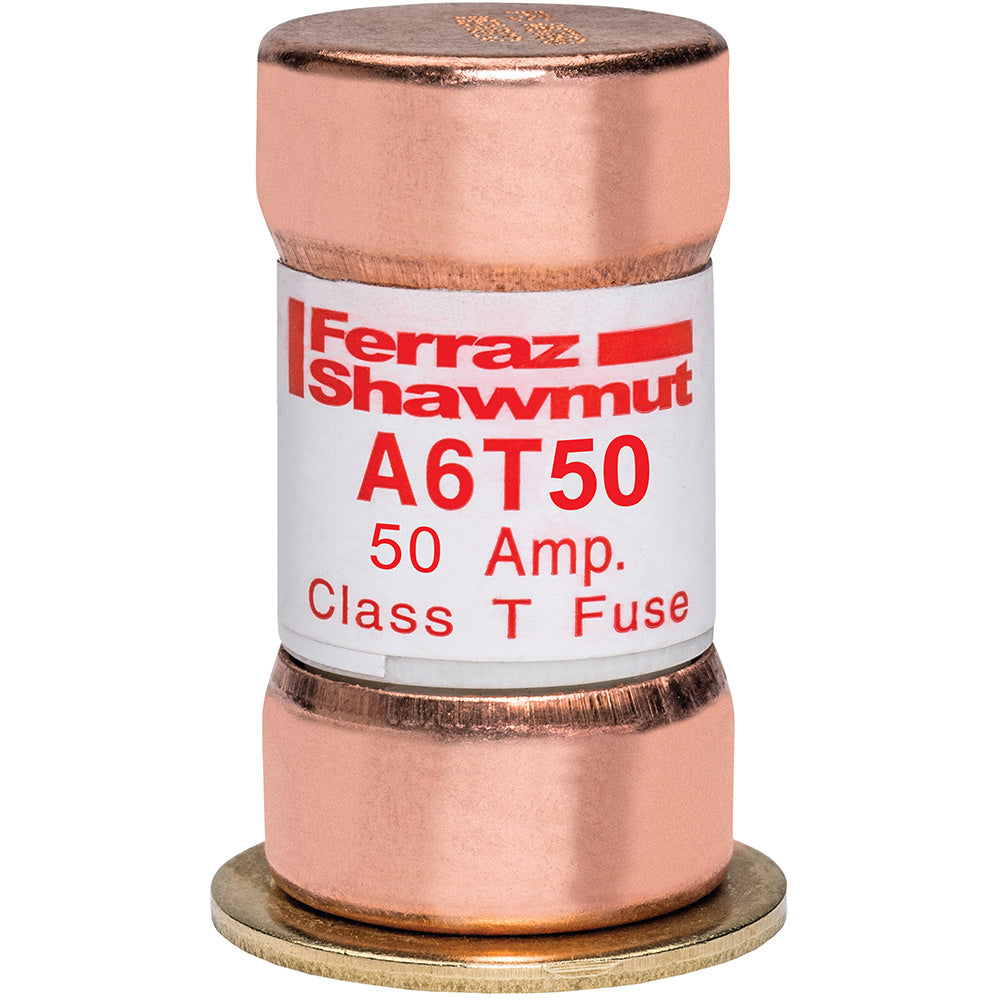

A6T50
A6T50 is a Class T fast-acting fuse from Mersen designed for low voltage applications.This fuse features a 50 ampere rating with a voltage capacity of 600 VAC and 300 VDC. It is a current-limiting fuse with a ferrule terminal type, providing fast-acting protection and compliance with UL 248/248-15 and CSA C22.2 certifications. The cylindrical body measures approximately 0.81 inch diameter by 1.57 inch length, ensuring unique dimensions that prevent replacement by other fuse classes.
- Key Specifications
- Amperage: 50 A
- Voltage: 600 VAC / 300 VDC
- Fuse Class: Class T
- Trip Type: Fast-Acting
- Interrupt Rating: 200 kA
- Terminal Type: Ferrule
- Body Type: Cylindrical
- Dimensions: 0.81" diameter x 1.57" length
- Certifications: UL 248/248-15, CSA C22.2
- Series: Amp-Trap®
- Part Number: A6T50
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : T
- Barrels : 1
- UPC : 782001891107
- GTIN : 00782001891107
- Weight : 0.08
