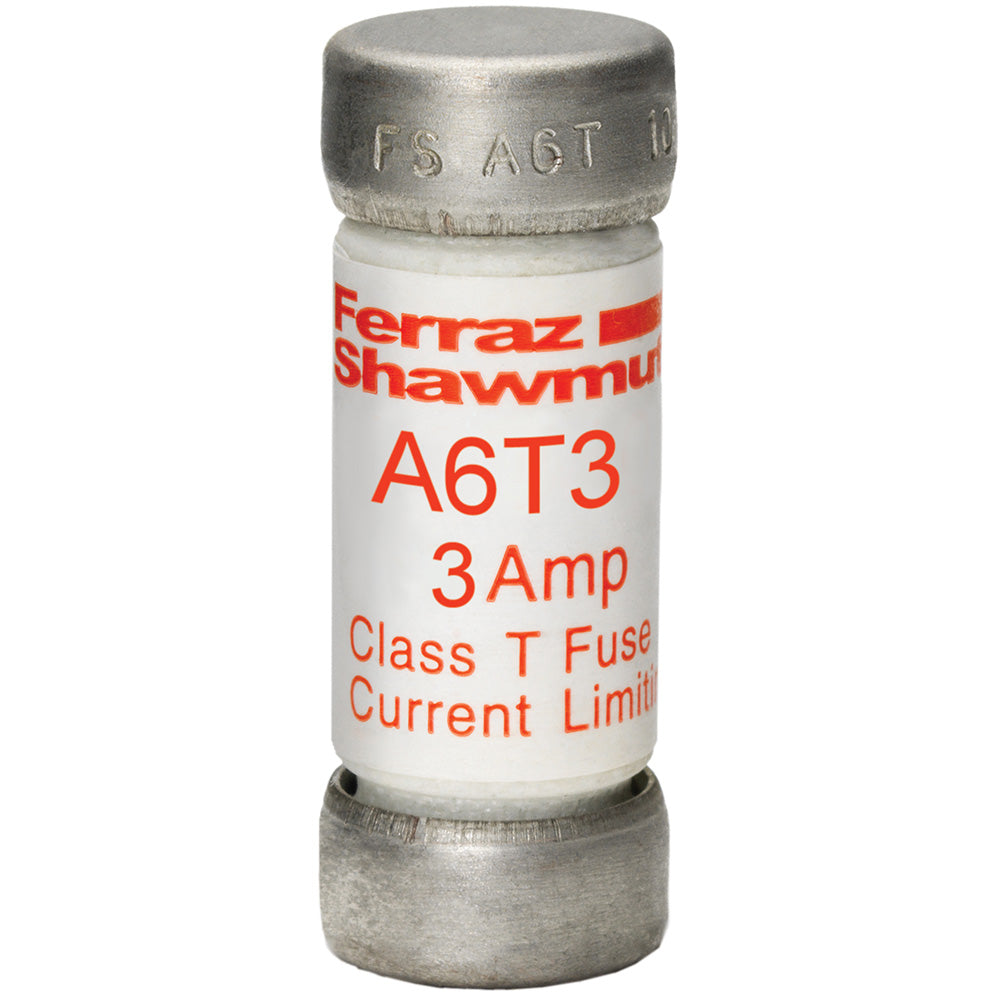

A6T3 - Mersen 3A 600V Class T Fast Acting Fuse, Cylindrical, 1 Pole, 200kA Interrupt Rating

A6T3

A6T3 is a Mersen Class T fast acting fuse rated for 3 amps and 600 volts AC, designed for current limiting in low voltage applications.This cylindrical fuse features a 0.57 inch diameter by 1.5 inch length body, with a single pole clip mounting type. It provides extremely current limiting performance with a high interrupt rating of 200,000 amps at 600 VAC and 100,000 amps at 300 VDC. The fuse is UL 248-15 and CSA certified, with copper contacts and a fiber body for durability. Its unique dimensions prevent substitution with other fuse classes, ensuring safety and reliability.

Key Specifications
• Amperage: 3 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: T
• Body Size: 0.57 in diameter x 1.5 in length
• Mounting Type: Clip
• Interrupt Rating: 200 kA AC / 100 kA DC
• Poles: 1
• Material: Fiber body, copper contacts
• Series: A6T
• Certifications: UL 248-15 (File E2137), CSA C22.2 No. 248.15
• Type: Fast acting, current limiting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A6T3
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A6T
• Type : A6T
• Voltage : 600
• Amperage : 3
• AIC rating : 200kA@600V
• Diameter : 0.57
• Class Rating : T
• Barrels : 1

Product Data

• UPC : 782001891015
• GTIN : 00782001891015
• Weight : 0.03
