Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

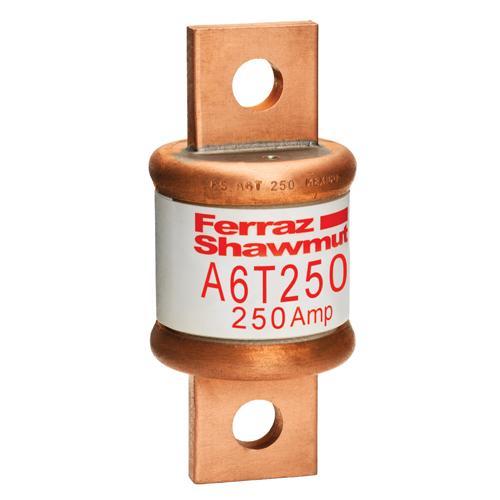

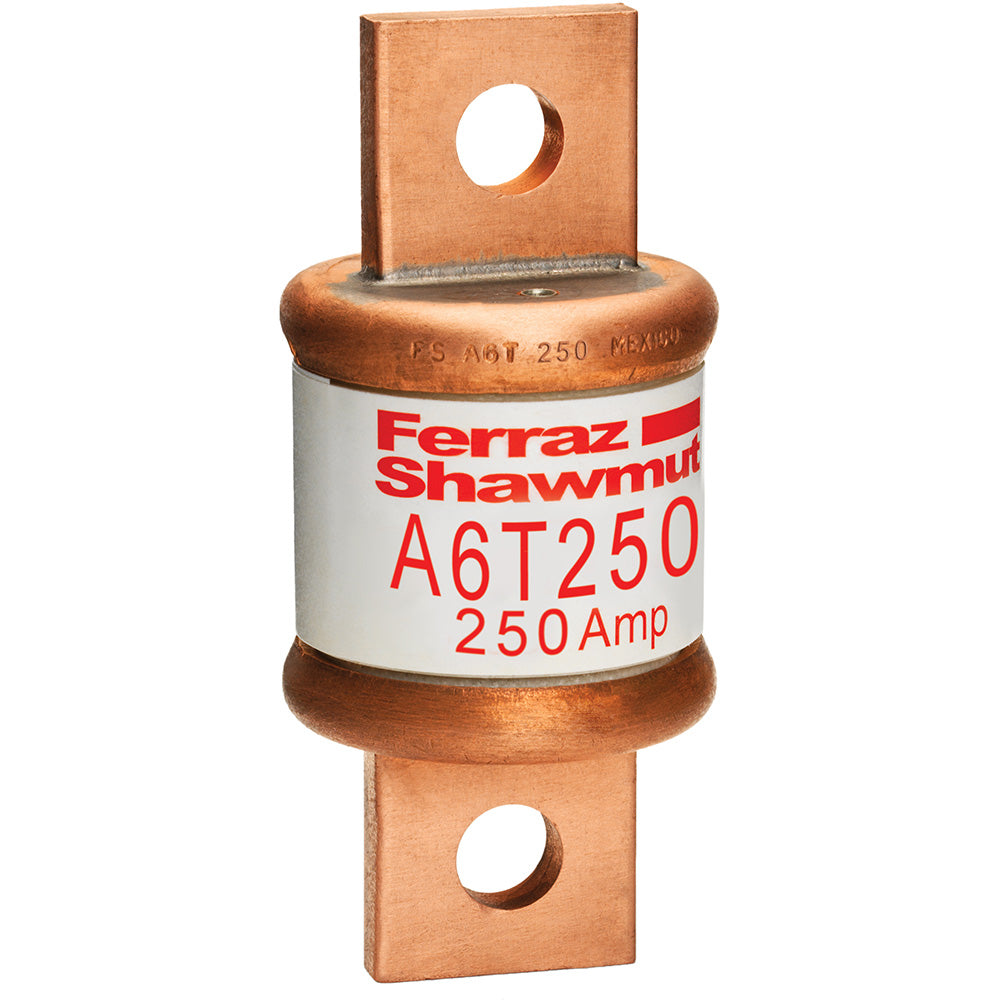

A6T250
A6T250 is a Mersen Class T fast-acting fuse designed for low voltage applications with high interrupting capacity.A6T250 features a 250 ampere rating, voltage ratings of 600 volts AC and 300 volts DC, and a current limiting design with a 200 kA interrupt rating at 600 VAC and 100 kA at 300 VDC. It has a cylindrical body construction and complies with UL 248/248-15 and CSA C22.2 certifications.
- Key Specifications
- Amperage: 250 A
- Voltage Rating: 600 VAC / 300 VDC
- Interrupt Rating: 200 kA AC / 100 kA DC
- Fuse Class: Class T
- Speed: Fast-Acting
- Body Type: Cylindrical
- Dimensions: 1.62 inch diameter x 3.62 inch length
- Certifications: UL 248/248-15, CSA C22.2
- Mounting Type: Cartridge style
- Current Limiting: Yes
Specifications
- Part Number: A6T250
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 250
- AIC rating : 200kA@600V
- Diameter : 1.62
- Class Rating : T
- Barrels : 1
- Clip Center : 2.72
Product Data
- UPC : 782001891503
- GTIN : 00782001891503
- Weight : 2
