Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6T150

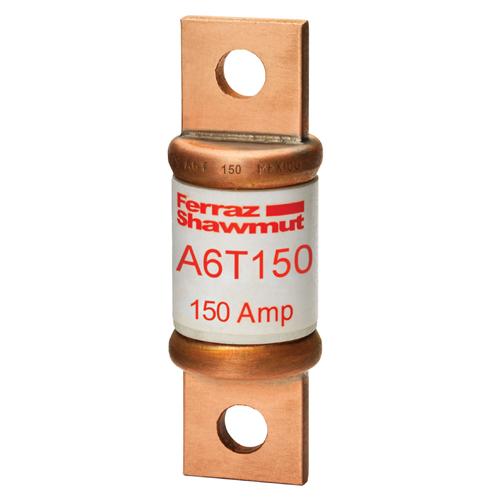

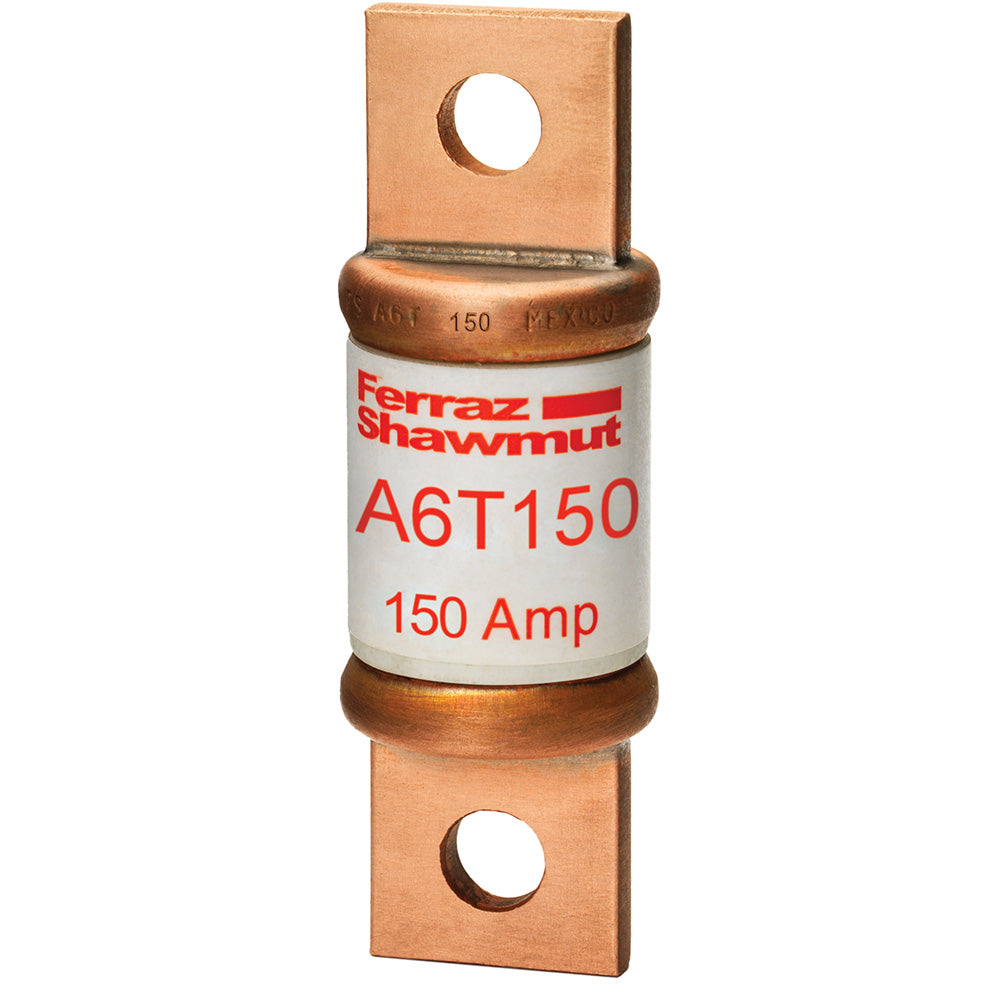

A6T150 is a Mersen Class T fast-acting fuse designed for low voltage circuit protection with high interrupting capacity.This fuse features a 150 ampere rating and is suitable for use in both AC and DC circuits with voltage ratings of 600 VAC and 300 VDC. It has a cylindrical body design and provides current limiting protection with a high interrupt rating of 100 kA at AC and 200 kA at DC. The fuse complies with UL 248/248-15 and CSA C22.2 certifications, ensuring reliable and safe operation in industrial and commercial applications.
- Key Specifications
- Amperage: 150 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Type: Class T Fast-Acting
- Interrupt Rating: 100 kA AC / 200 kA DC
- Body Style: Cylindrical
- Length: Approximately 3.26 inches
- Diameter: Approximately 1.07 inches
- Certifications: UL 248/248-15, CSA C22.2
- Mounting Type: Cartridge style
- Series: Amp-Trap® A6T
- Part Number: A6T150
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Diameter : 0.41
- Class Rating : midget
- Barrels : 1
- Clip Center : 2.51
- UPC : 78200189146
- GTIN : 00782001891466
- Weight : 1
