Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

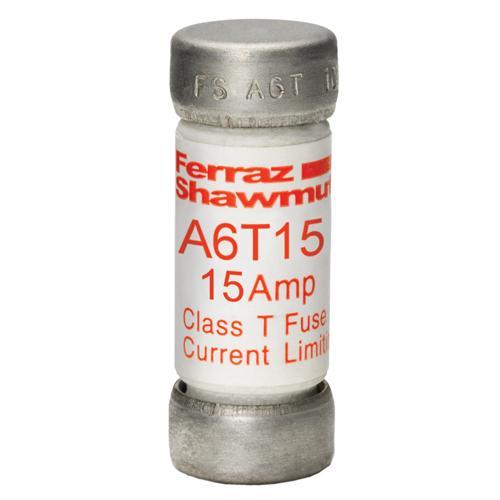

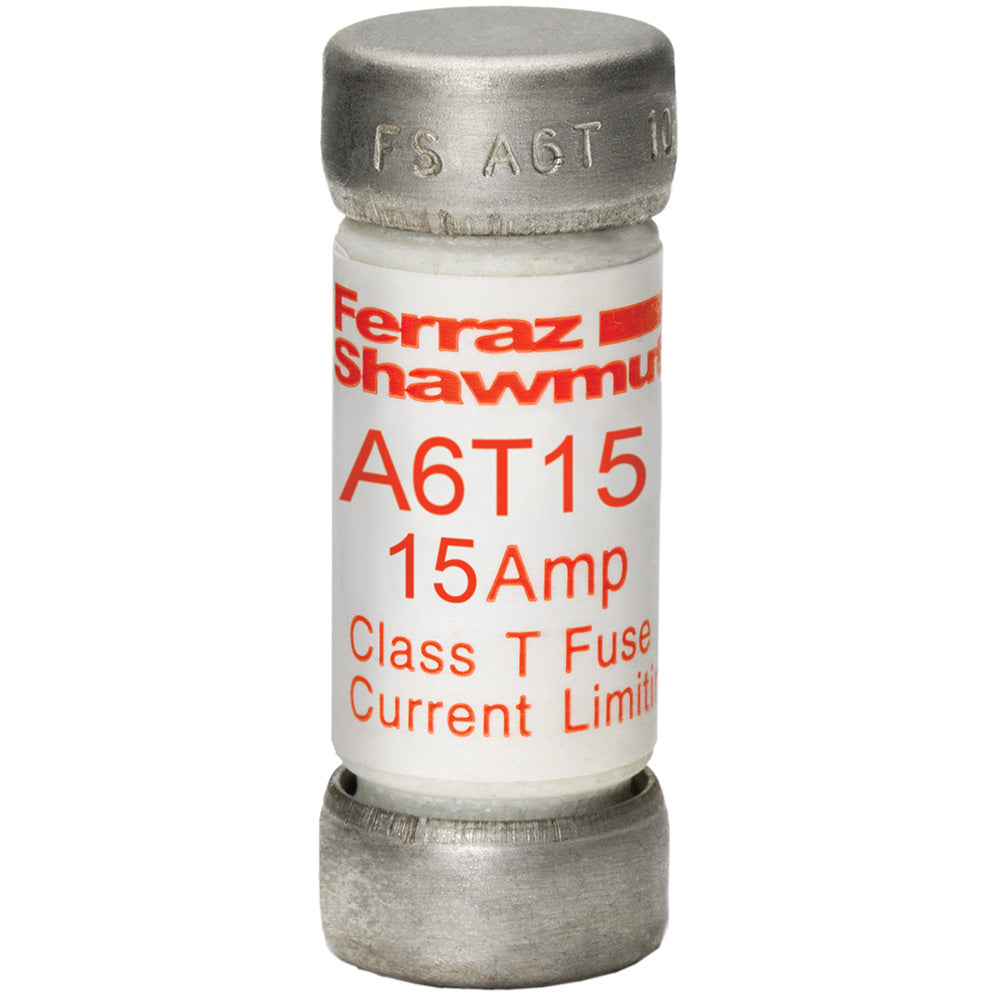

A6T15
A6T15 is a Mersen Class T fast-acting fuse rated for 15 amps and designed for low voltage applications.This fuse features a 600 VAC and 300 VDC voltage rating, a 200kA interrupting rating, and a ferrule terminal type. It is constructed with a cylindrical GMG insulating body and copper terminals, designed for clip mounting. The A6T15 fuse is UL listed and CSA certified, meeting standards UL 248-15 and C22.2 no. 248.15, ensuring reliable circuit protection with fast-acting trip characteristics.
- Key Specifications
- Amperage: 15 A
- Voltage: 600 VAC / 300 VDC
- Fuse Class: Class T
- Trip Characteristic: Fast-Acting
- Interrupt Rating: 200 kA
- Terminal Type: Ferrule
- Mounting Type: Clip
- Body Material: GMG
- UL Listed: Yes (UL 248-15)
- CSA Certified: Yes (C22.2 no. 248.15)
- Dimensions: 0.57 in diameter x 1.5 in length
Specifications
- Part Number: A6T15
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 15
- AIC rating : 200kA@600V
- Diameter : 0.57
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 782001891206
- GTIN : 00782001891206
- Weight : 0.03
