A6T100 - Mersen 100A 600V Class T Fast Acting Fuse with Blade Terminals

A6T100

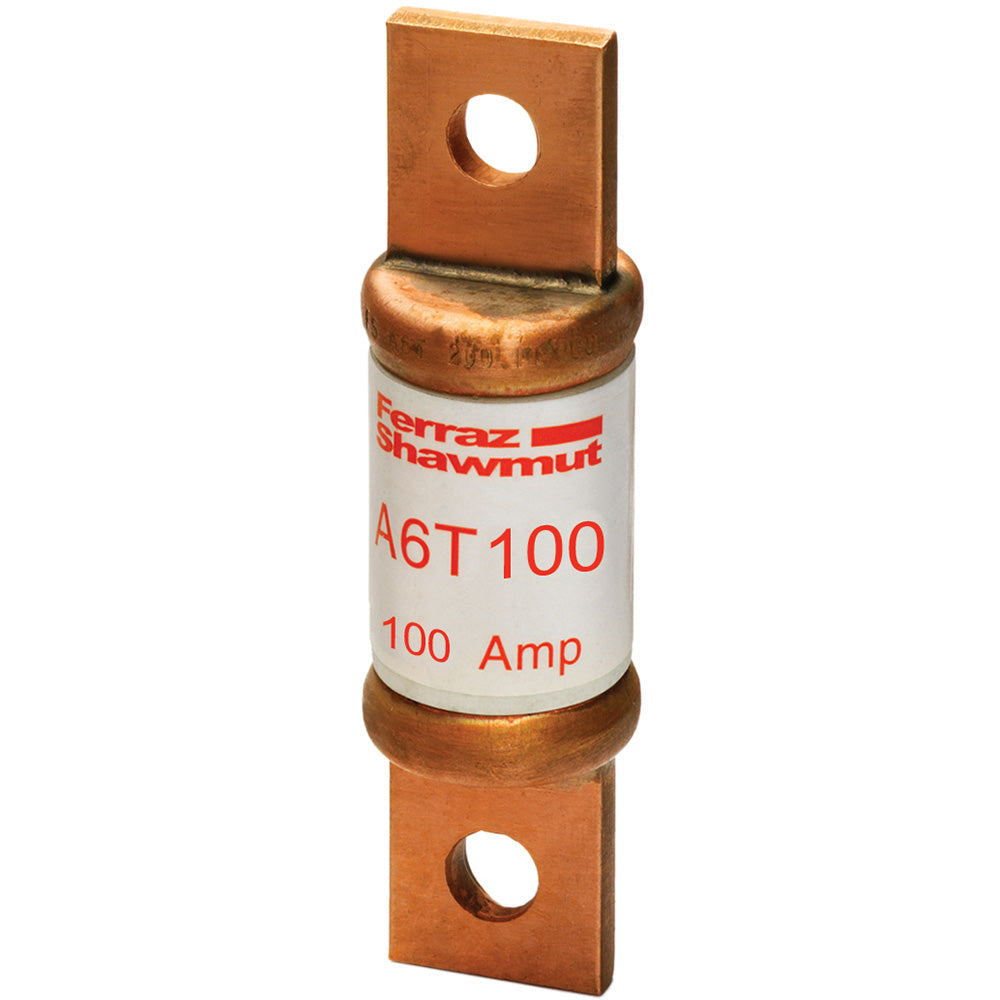

This fuse features a compact cylindrical body measuring 0.82 inches in diameter and 2.95 inches in length, with blade terminals for bolted mounting. It offers extremely current limiting characteristics and a high interrupting rating of 200,000 AIC at AC and 100,000 AIC at DC. The A6T100 is UL listed to standard 248-15 (File E2137), CSA certified to C22.2 No. 248.15, and DC listed to UL 248. It is designed to prevent replacement by other fuse classes due to its unique dimensions and permanently stamped catalog numbers for easy identification.

Key Specifications
• Amperage: 100 A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: Class T
• Trip Characteristic: Fast Acting
• Interrupting Rating: 200,000 AIC (AC), 100,000 AIC (DC)
• Mounting Type: Bolted with blade terminals
• Dimensions: 0.82 in diameter x 2.95 in length
• Certifications: UL Listed (248-15), CSA Certified (C22.2 No. 248.15), DC Listed UL 248
• Body Material: GMG
• Unique physical size prevents substitution by other fuse classes
• Blade stamped catalog numbers for permanent identification

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: A6T100
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A6T
• Type : A6T
• Voltage : 600
• Amperage : 100
• AIC rating : 200kA@600V
• Diameter : 0.82
• Class Rating : T
• Barrels : 1
• Clip Center : 2.35



Product Data

• UPC : 782001891435
• GTIN : 00782001891435
• Weight : 0.11
