Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6T10

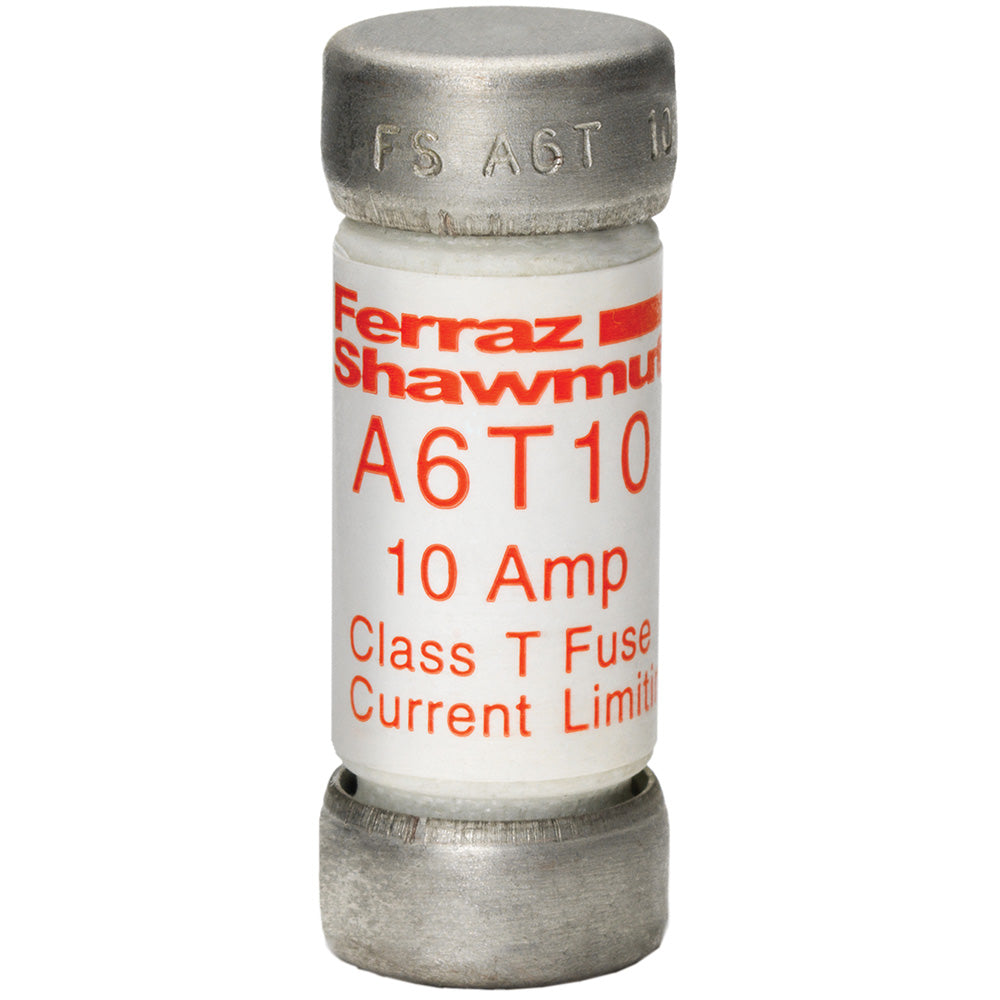

A6T10 is a Mersen Class T fast-acting fuse rated for 10 amps and 600 volts AC, designed for current limiting in compact applications.This fuse features a cylindrical glass melamine body measuring 0.57 inches in diameter by 1.5 inches in length, providing superior dimensional stability and preventing substitution with lower-rated fuses. It offers extremely current-limiting performance with a high interrupt rating of 200,000 AIC AC and 100,000 AIC DC. The fuse is UL 248-15 and CSA C22.2 No. 248.15 certified, suitable for load centers, panelboards, switchboards, and metering centers.
- Amperage: 10 A
- Voltage Rating: 600 V AC / 300 V DC
- Fuse Class: T
- Speed: Fast-Acting
- Interrupt Rating: 200,000 AIC AC / 100,000 AIC DC
- Body Size: 0.57 in diameter x 1.5 in length
- Mounting Type: Cylindrical, blade stamped for identification
- Certifications: UL 248-15, CSA C22.2 No. 248.15
- Current Limiting: Extremely high for low peak let-thru current
- Country of Origin: Mexico
Specifications
- Part Number: A6T10
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 10
- AIC rating : 200kA@600V
- Diameter : 0.57
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 782001891039
- GTIN : 00782001891039
- Weight : 0.03
