Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6T1

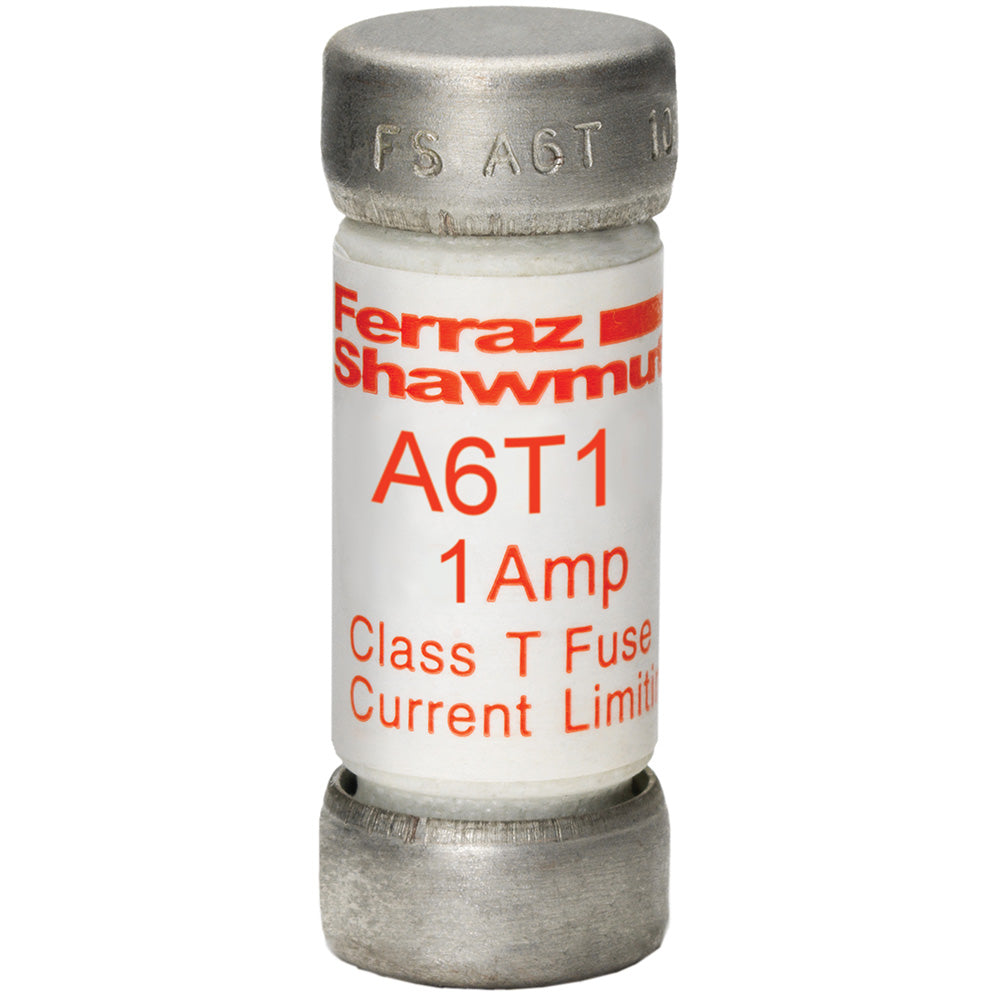

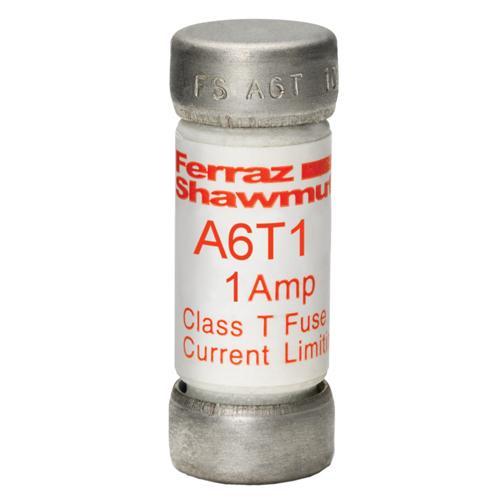

A6T1 is a Class T fast-acting fuse manufactured by Mersen that combines high current-limitation with a compact physical size. This low-voltage fuse is designed for applications requiring reliable overcurrent protection in industrial and commercial electrical systems. The unique dimensions of the A6T Class T fuse prevent misapplication while delivering superior performance in demanding environments.Key Specifications
- Part Number: A6T1
- Manufacturer: Mersen
- Fuse Type: Class T Fast-Acting
- Amperage Rating: 1 Amp
- Voltage Rating: 600V AC / 300V DC
- Fuse Size: 0.57 Inch Diameter x 1.5 Inch Length
- UL Listed: UL 248-15 (File E2137)
- CSA Certified: C22.2 No. 248.15
- Current Limitation: High
Specifications
- Part Number: A6T1
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6T
- Type : A6T
- Voltage : 600
- Amperage : 1
- AIC rating : 200kA@600V
- Diameter : 0.57
- Class Rating : T
- Barrels : 1
Product Data
- UPC : 782001891008
- GTIN : 00782001891008
- Weight : 0.03
