Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6K70R

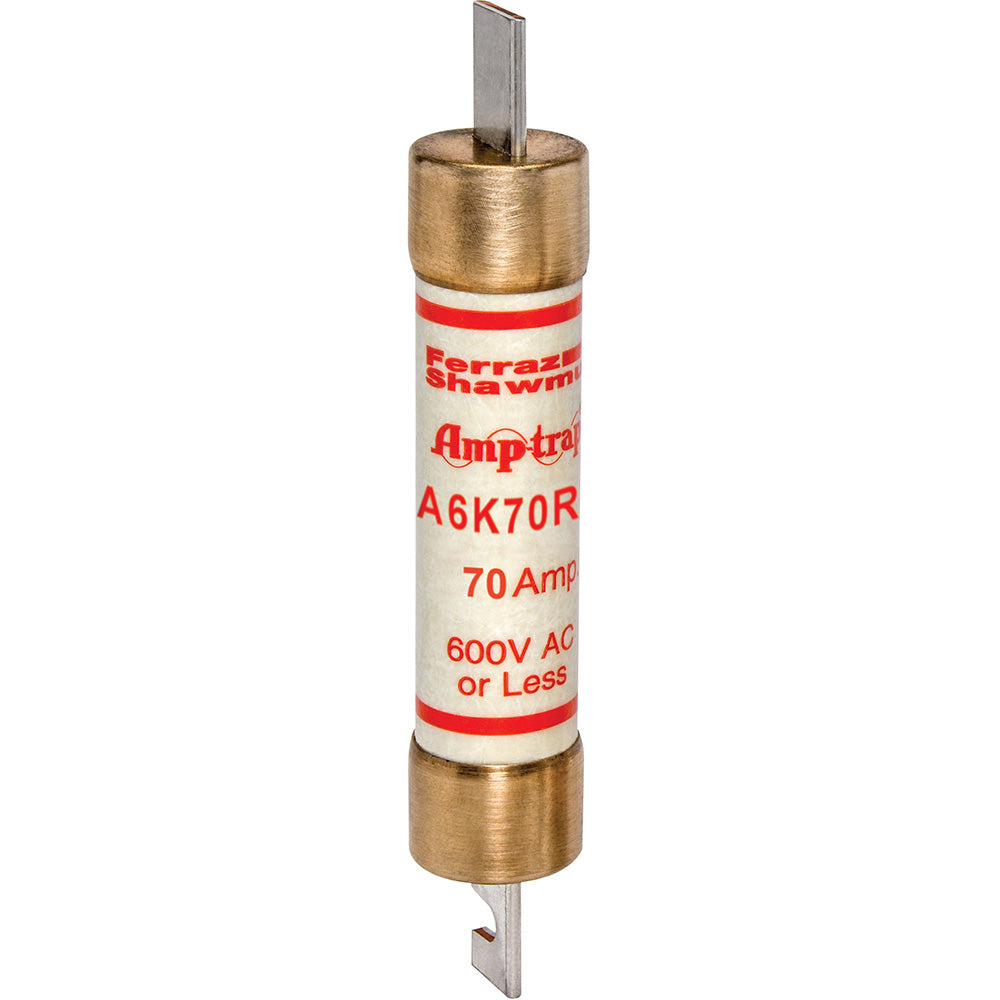

A6K70R is a Mersen A6K-R Series Class RK1 fast-acting fuse rated for 70A at 600V AC, designed for reliable protection in power distribution systems. This low-voltage fuse features a blade terminal, rejection style design, and is suitable for load centers, panelboards, switchboards, and feeder circuits. The fiberglass body provides dimensional stability in harsh environments, and the fuse is UL 248-12 and CSA C22.2 certified.
- Part Number: A6K70R
- Manufacturer: Mersen
- Series: A6K-R
- Fuse Class: Class RK1
- Amperage Rating: 70A
- Voltage Rating: 600V AC, 300V DC
- Interrupt Rating: 200kA
- Mounting Type: Clip (Blade)
- Terminal Type: Blade
- Body Material: Fiberglass
- Certifications: UL 248-12, CSA C22.2
- Application: Load Centers, Panelboards, Switchboards, Bus Duct, Feeder Circuits
Specifications
- Part Number: A6K70R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6K-R Series
- Type : A6K-R
- Voltage : 600
- Amperage : 70
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915704
- GTIN : 00782001915704
- Weight : 5
