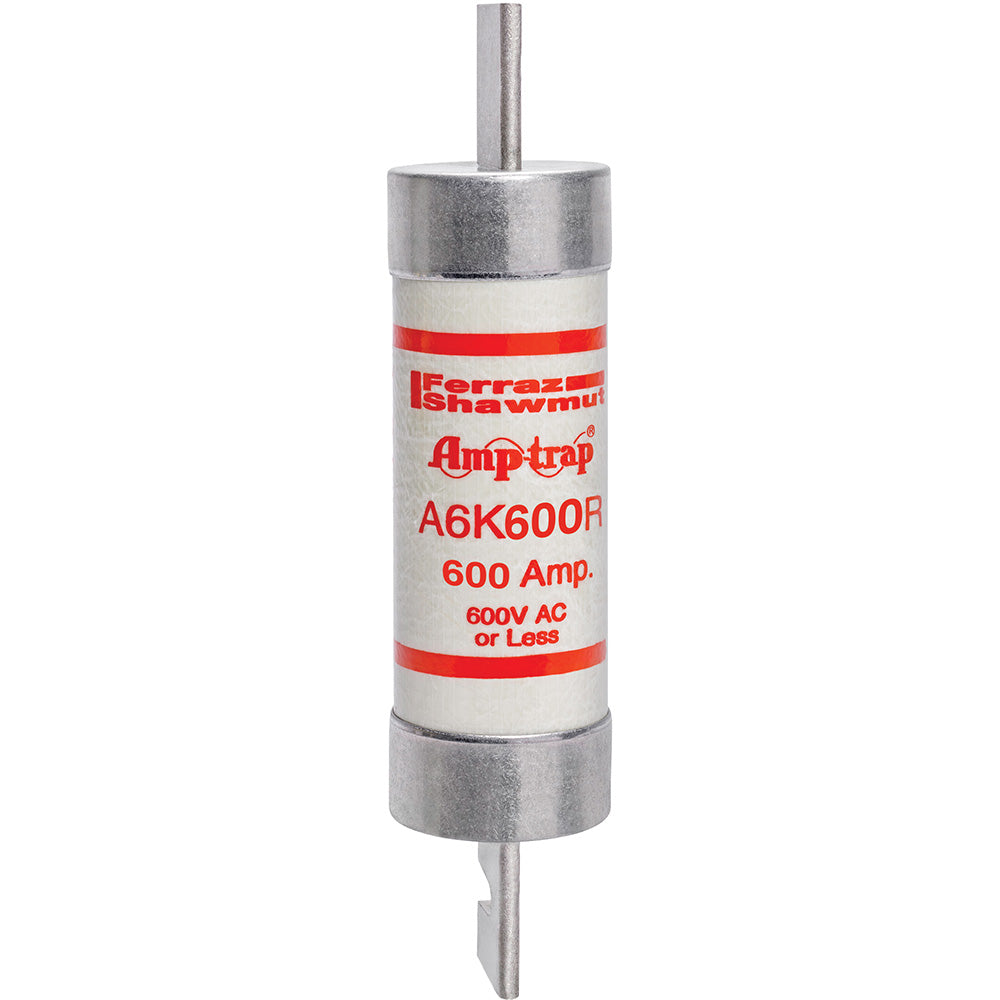

A6K600R - Mersen 600A 600V AC Class RK1 Fast-Acting Fuse, 200kA Interrupt Rating

A6K600R

A6K600R is a Mersen 600 Amp, 600 Volt AC Class RK1 fast-acting fuse designed for low voltage power protection.This fuse features a current-limiting Amp-Trap design with a 200,000 A interrupting rating at 600 VAC and 20,000 A at 300 VDC. It has a rejection style design to prevent replacement errors, a fiberglass body for dimensional stability, and an easy-to-read imprint label for quick recognition. The fuse measures 3 1/8 inches in diameter and 13 3/8 inches in length. It is UL listed to standard 248-12 and CSA certified to C22.2 No. 248.12.

Key Specifications
• Amperage: 600A
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Class: RK1
• Interrupting Rating: 200kA AC / 20kA DC
• Fast-Acting
• Physical Size: 3 1/8" diameter x 13 3/8" length
• Rejection Style Design
• UL Listed (UL 248-12), CSA Certified
• Fiberglass Body
• Easy-to-Read Label
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A6K600R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A6K-R Series
• Type : A6K-R
• Voltage : 600
• Amperage : 600
• AIC rating : 200kA@600V
• Diameter : 3.13
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782001915933
• GTIN : 00782001915933
• Weight : 5
