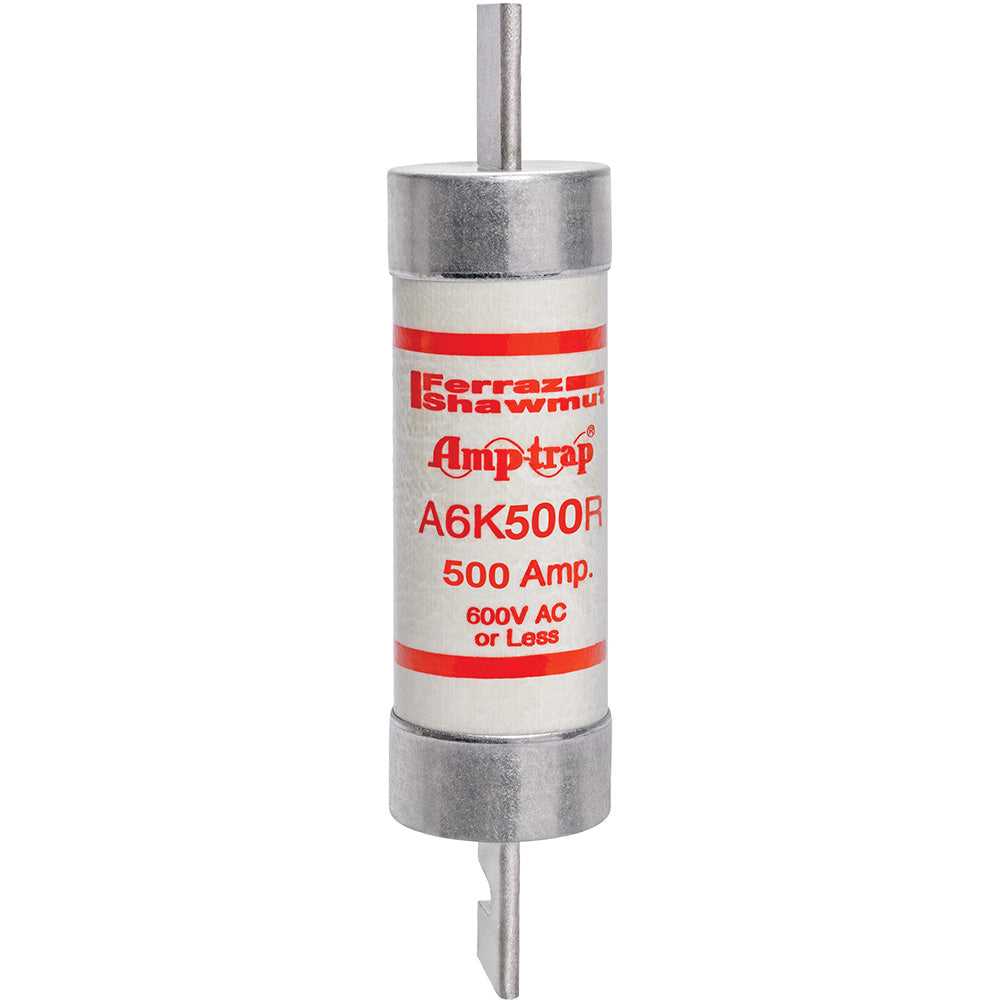

A6K500R - Mersen 500 Amp 600 Volt Class RK1 Fuse Cartridge Fast Acting

A6K500R

A6K500R is a Mersen Class RK1 fuse cartridge rated for 500 amps and 600 volts AC, designed for fast-acting circuit protection.This fuse features a current-limiting, fast-acting design suitable for low voltage power distribution applications. It is UL 248/248-12 and CSA C22.2 certified, with a voltage rating of 600 VAC and 300 VDC, and an interrupt rating of up to 200 kiloamperes. The fuse has a fiberglass body for durability and a rejection style design to prevent replacement with incorrect fuse classes.

Key Specifications
• Amperage: 500 Amp
• Voltage Rating: 600 VAC / 300 VDC
• Fuse Type: Class RK1 Cartridge
• Interrupt Rating: 200 kA
• Response Time: Fast Acting
• Mounting Type: Cartridge
• Certifications: UL 248/248-12, CSA C22.2
• Body Material: Fiberglass
• Dimensions: Approximately 13-3/8 inches length, 3-1/8 inches diameter
• Rejection Style Design for safety
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A6K500R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : A6K-R Series
• Type : A6K-R
• Voltage : 600
• Amperage : 500
• AIC rating : 200kA@600V
• Diameter : 3.13
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782001915926
• GTIN : 00782001915926
• Weight : 4
