Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6K45R

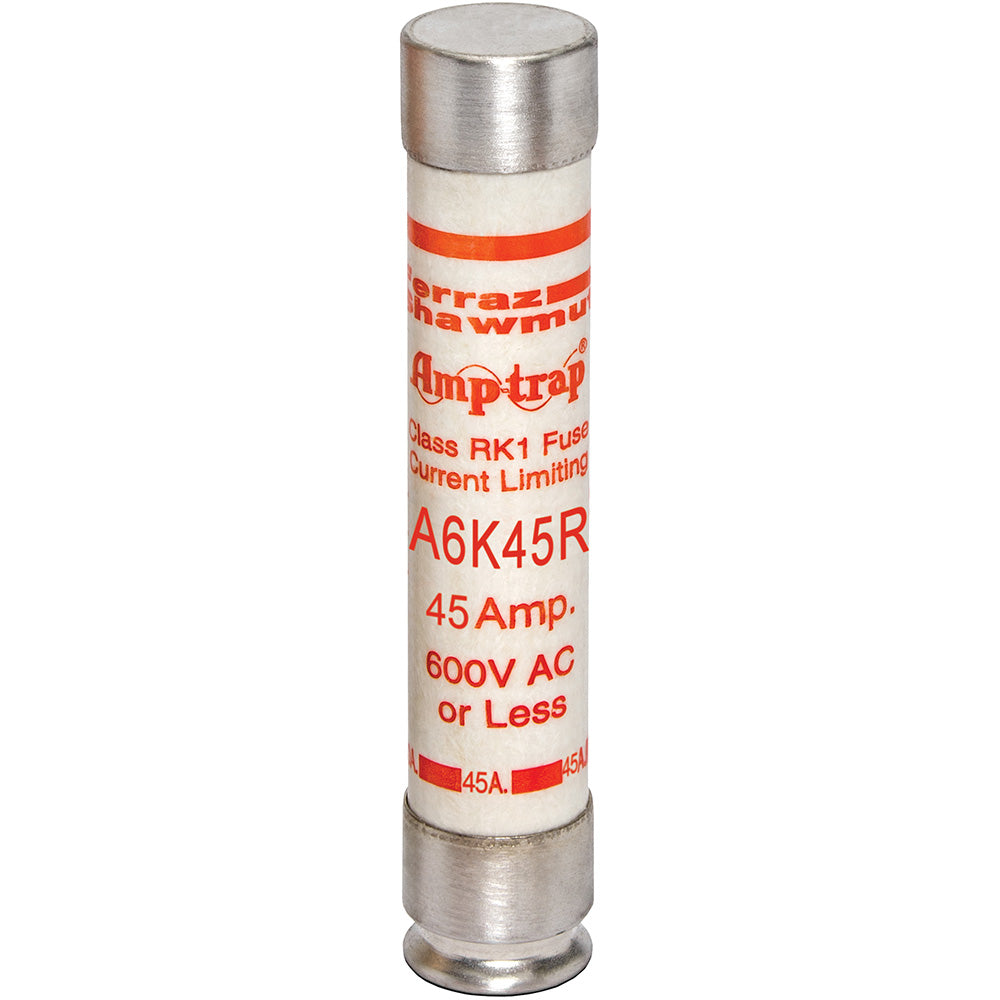

A6K45R is a Mersen A6K Series 600V 45A Class RK1 fast-acting fuse designed for reliable circuit protection in industrial and commercial applications. This current-limiting fuse provides excellent protection where high available short-circuit currents exist, making it ideal for branch/feeder circuits and back-up protection. The A6K45R fuse features a 1-1/16 inch diameter, clip mounting, and is rated for 600V AC and 300V DC. It is UL 248/248-12 and CSA C22.2 certified, ensuring compliance with industry standards. The fuse is fast-acting and offers a 200 kA interrupting rating for maximum safety.
- Part Number: A6K45R
- Manufacturer: Mersen
- Series: A6K
- Amperage Rating: 45A
- Voltage Rating: 600V AC, 300V DC
- Fuse Type: Class RK1
- Interrupting Rating: 200 kA
- Mounting Type: Clip
- Diameter: 1-1/16 inch
- Length: 5-1/2 inch
- Features: Fast-Acting, Current-Limiting
- Certifications: UL 248/248-12, CSA C22.2
Specifications
- Part Number: A6K45R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6K-R Series
- Type : A6K-R
- Voltage : 600
- Amperage : 45
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915650
- GTIN : 00782001915650
- Dimensions : x 5.5 in x
- Weight : 0.34
