Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

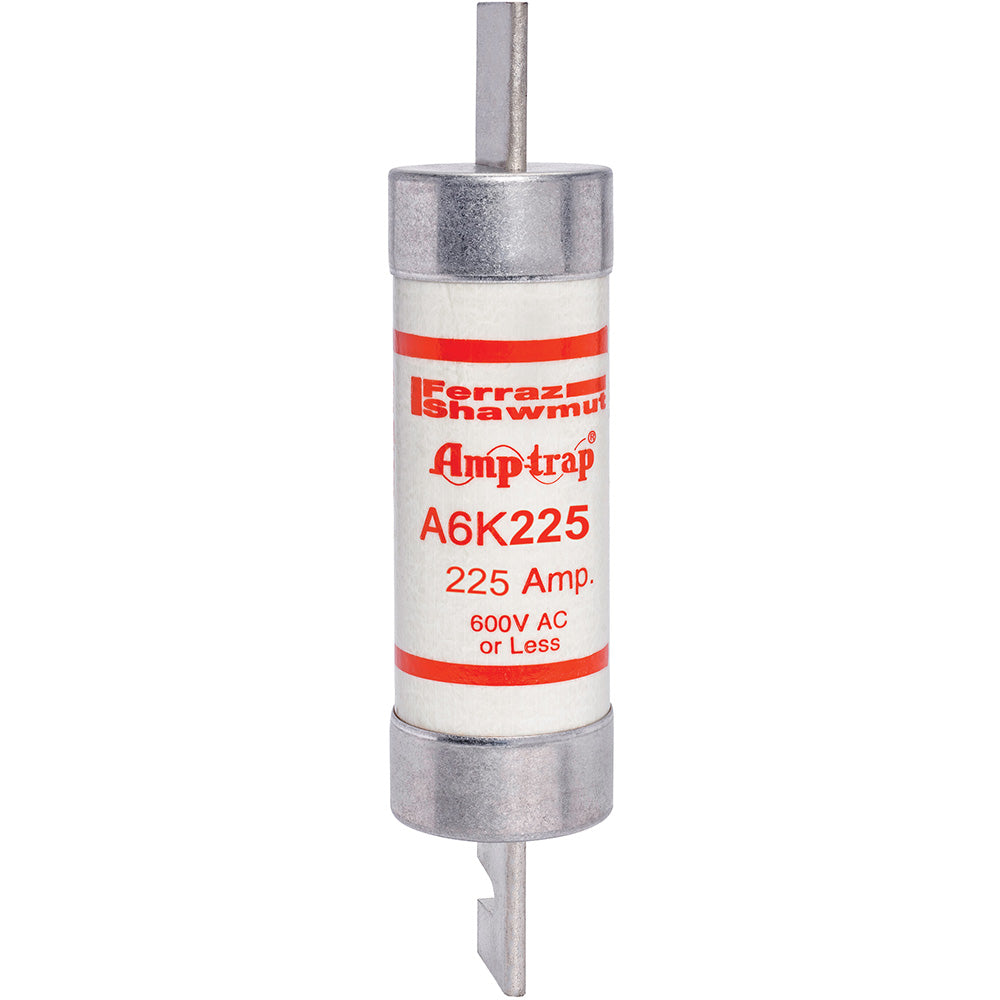

A6K225R
A6K225R is a Mersen Ferraz Shawmut Class RK1 fast-acting fuse rated for 225 amps and 600 volts AC.This fuse features a current-limiting Amp-Trap design providing excellent protection in high short-circuit current environments. It is fast-acting with a 200kA interrupting rating and measures 2 9/16 inches in diameter by 11 5/8 inches in length. The fuse is UL 248/248-12 and CSA C22.2 certified, suitable for both AC and DC applications up to 600V AC and 300V DC.
- Key Specifications
- Amperage: 225A
- Voltage Rating: 600V AC, 300V DC
- Fuse Type: Class RK1
- Interrupting Rating: 200kAIC
- Fast-Acting
- Dimensions: 2.56" diameter x 11.625" length
- Mounting Type: Barrel Fuse
- Certifications: UL 248/248-12, CSA C22.2
- Series: A6K-R
Specifications
- Part Number: A6K225R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6K-R Series
- Type : A6K-R
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Diameter : 2.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915834
- GTIN : 00782001915834
- Weight : 3
