Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

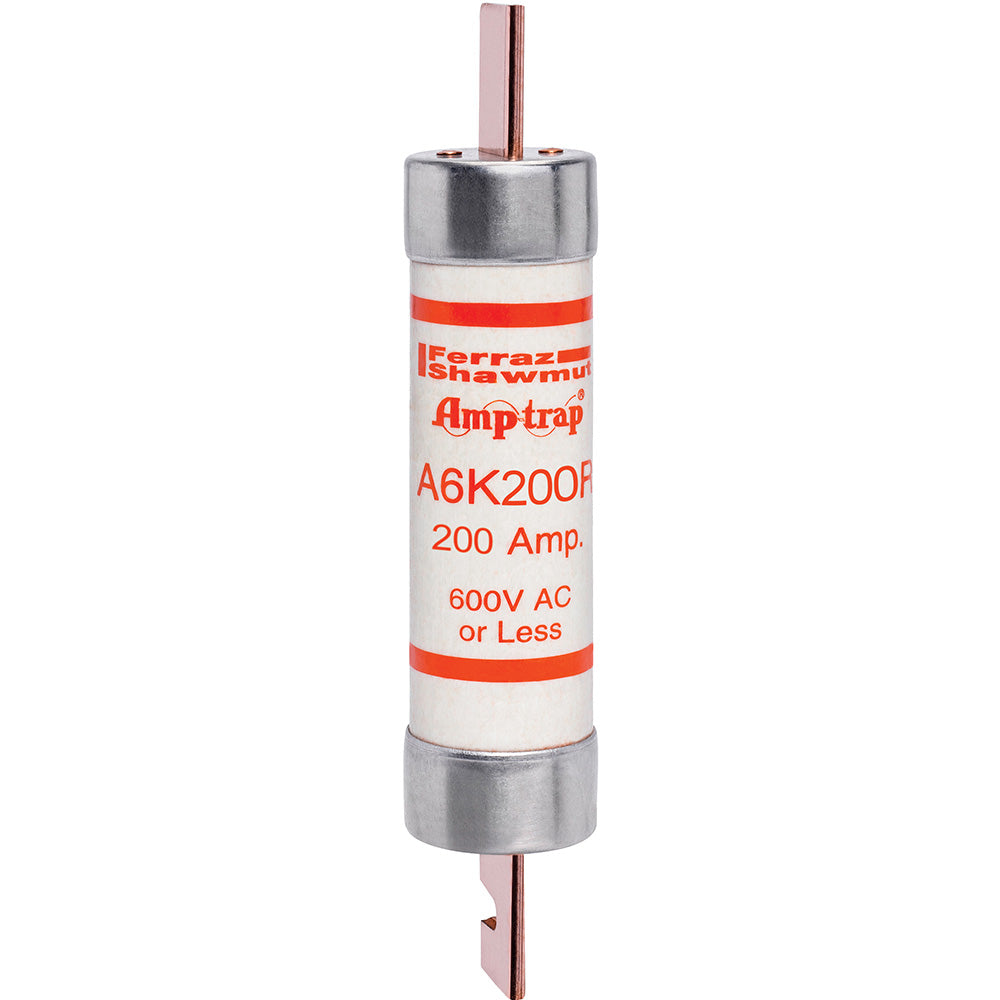

A6K200R
A6K200R is a Mersen fast-acting fuse designed for 200 amps and 600 volts AC applications, classified as Class RK1.This fuse features a 200,000 AIC interrupt rating at 600 VAC and 20,000 AIC at 300 VDC, with a blade mounting style and a rejection design to prevent replacement errors. It is UL listed to standard 248-12 and CSA certified, ensuring reliable protection in power distribution systems.
- Amperage: 200A
- Voltage Rating AC: 600V
- Voltage Rating DC: 300V
- Fuse Class: RK1
- Speed: Fast-Acting
- Interrupting Rating AC: 200kA
- Interrupting Rating DC: 20kA
- Mounting Type: Blade
- Dimensions: 1 13/16" diameter x 9 5/8" length
- UL Listed to 248-12, UL File E2137
- CSA Certified to C22.2 No. 248.12
- Rejection Style Design for error prevention
Specifications
- Part Number: A6K200R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6K-R Series
- Type : A6K-R
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Diameter : 1.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915803
- GTIN : 00782001915803
- Country of Origin : Mexico
- Dimensions : x 9.63 in x
- Weight : 1
