Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6K100R

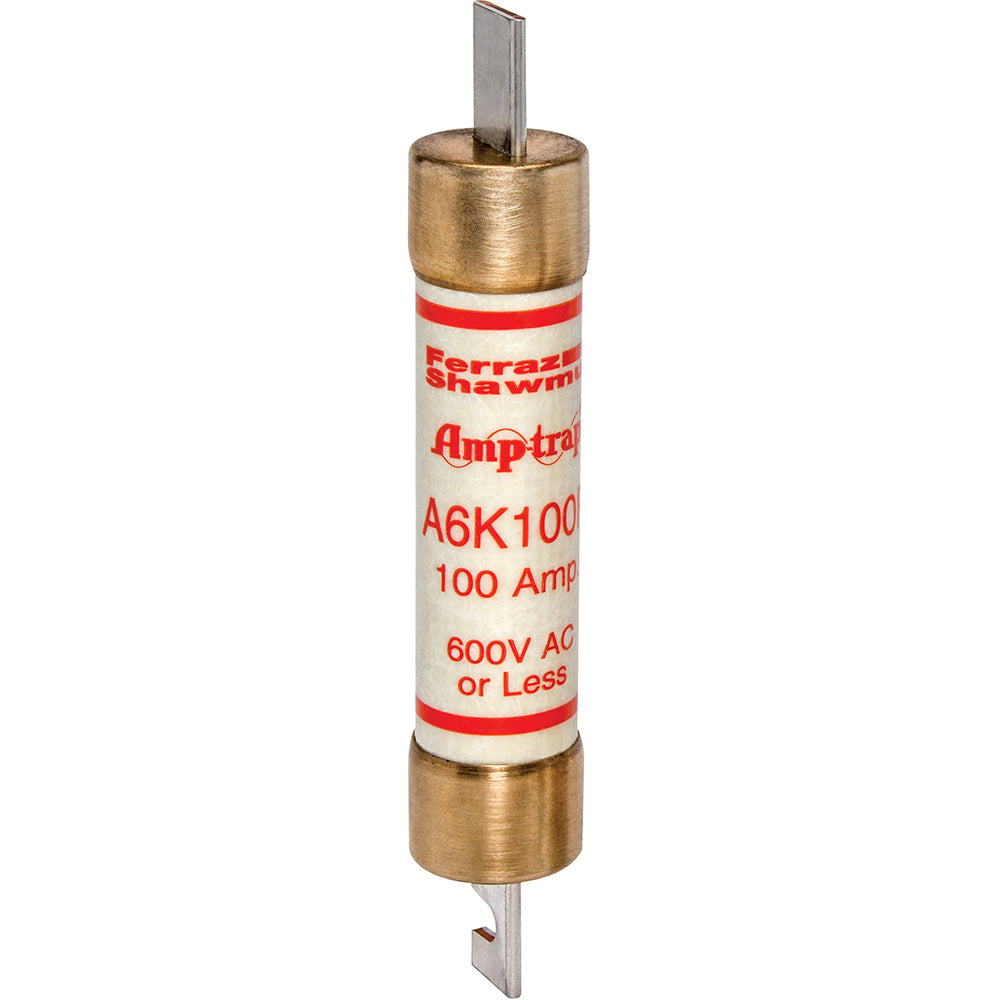

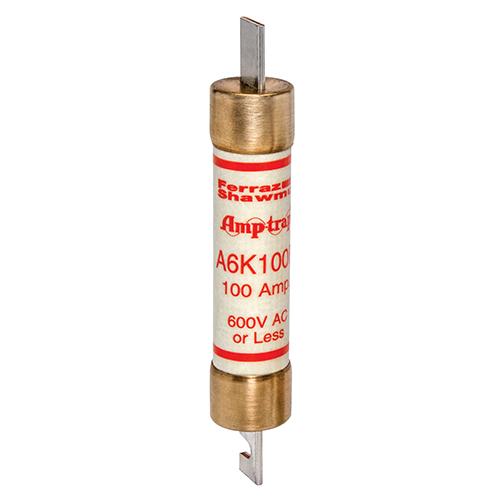

A6K100R is a fast-acting, current-limiting Class RK1 fuse rated for 100 amps at 600VAC and 300VDC with blade terminals.This Mersen fuse features a cylindrical poly tube body with a diameter of 1.31 inches and length of 7.88 inches. It is UL listed to standard 248-12 and CSA certified to C22.2 No. 248.12, designed for branch and feeder circuit protection. The fuse has a 200kA interrupt rating and a clip mounting type for easy installation.
- Key Specifications
- Amperage Rating: 100 A
- Voltage Rating: 600 VAC / 300 VDC
- Fuse Class: RK1
- Speed/Characteristic: Fast-Acting
- Interrupt Rating: 200 kA
- Terminal Type: Blade
- Mounting Type: Clip
- Body Material: PolyTube
- UL Listed: Yes, UL 248-12 File E2137
- CSA Certified: Yes, C22.2 No. 248.12
- Dimensions: 1.31 in Dia x 7.88 in Length
Specifications
- Part Number: A6K100R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : A6K-R Series
- Type : A6K-R
- Voltage : 600
- Amperage : 100
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001915735
- GTIN : 00782001915735
- Weight : 0.76
