Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

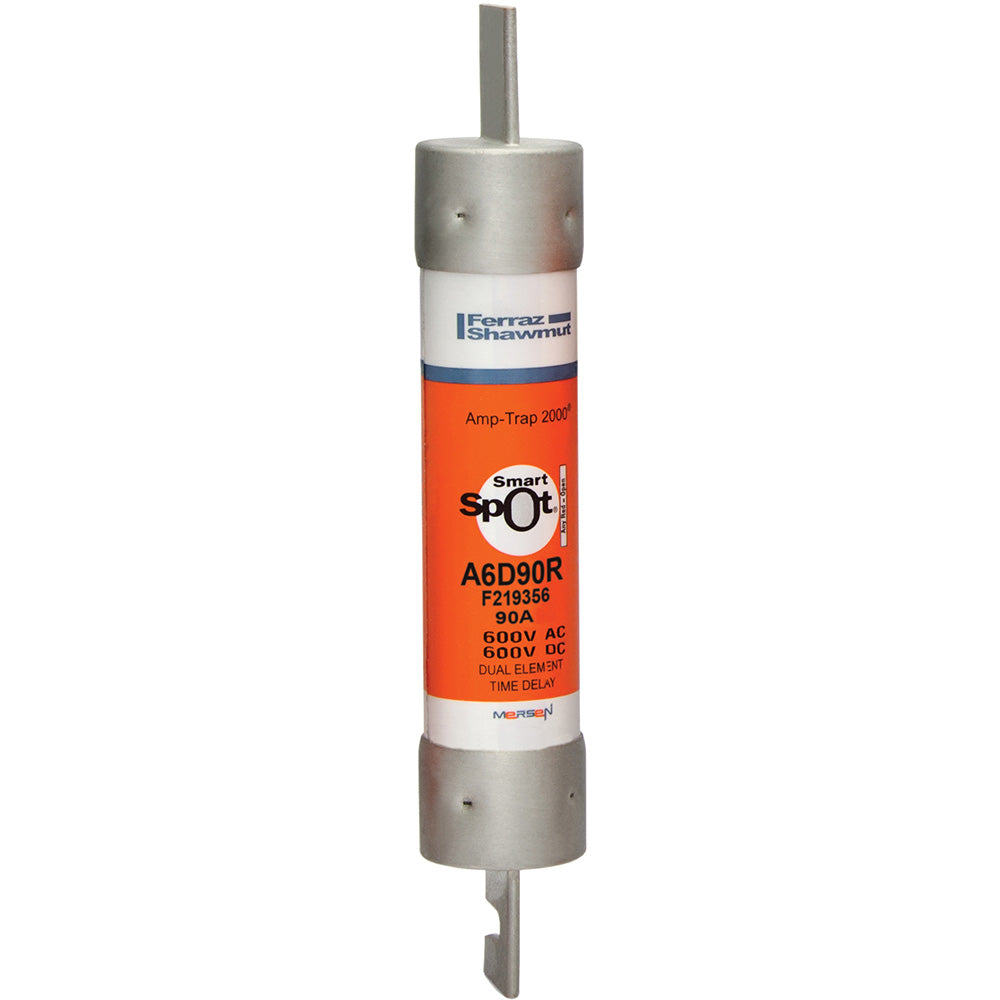

A6D90R
A6D90R is a Mersen 90 Amp, 600V AC/DC, Class RK1 time-delay current limiting fuse designed for reliable circuit protection in demanding applications.
This fuse features a time-delay characteristic for motor in-rush tolerance, fast response under extreme fault conditions, and IEC Type 2 "no damage" protection for mains, feeders, and branch circuits. It is suitable for replacing older 600V Class H, K, or RK5 fuses and includes a blown fuse indicator for easy maintenance. The compact, rejection-type design with blade terminals ensures secure installation and enhanced safety.
-
Key Specifications
- Part Number: A6D90R
- Manufacturer: Mersen
- Amperage: 90A
- Voltage: 600V AC/DC
- Poles: 1
- Mounting Type: Blade terminal
- Interrupt Rating: 200kA AC
- Series/Frame: Amp-Trap 2000, Class RK1
- Trip Unit: Time-delay
- Certifications: UL 248/248-12, CSA C22.2
- Protection Type: Current limiting, IEC Type 2
- Terminal Material: Tin-plated copper
- Blown Fuse Indicator: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: A6D90R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 90
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001992101
- GTIN : 00782001992101
- Country of Origin : Mexico
- Dimensions : x 7-7/8 in x
- Weight : 5
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
