Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6D80R

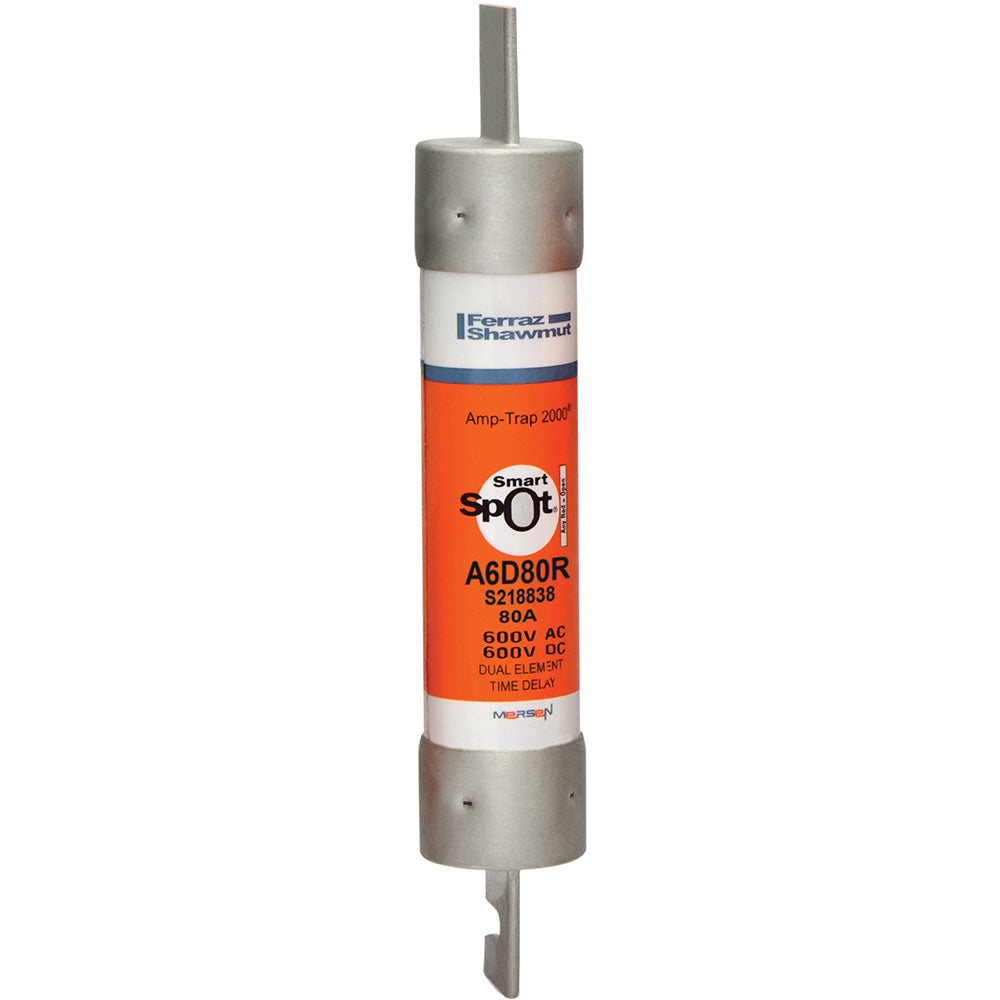

A6D80R is an 80 Amp, 600 Volt Class RK1 time delay fuse from Mersen designed for reliable circuit protection.A6D80R features a time-delay characteristic suitable for motor and branch circuit protection with AC/DC voltage rating and arc flash mitigating design. It complies with UL 248/248-12 and CSA C22.2 certifications and offers a 200 kiloamp interrupt rating.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: RK1
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA
- Series: A6D (Amp-Trap 2000)
- Certifications: UL 248/248-12, CSA C22.2
- Arc Flash Mitigating: Yes
- Mounting Type: Cartridge Fuse
- Diameter: 1-5/16 Inch
- Length: 7-7/8 Inch
Specifications
- Part Number: A6D80R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 80
- AIC rating : 200kA@600V
- Diameter : 1.31
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001992095
- GTIN : 00782001992095
- Country of Origin : Mexico
- Dimensions : x 7-7/8 in x
- Weight : 0.65
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
