Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6D6R

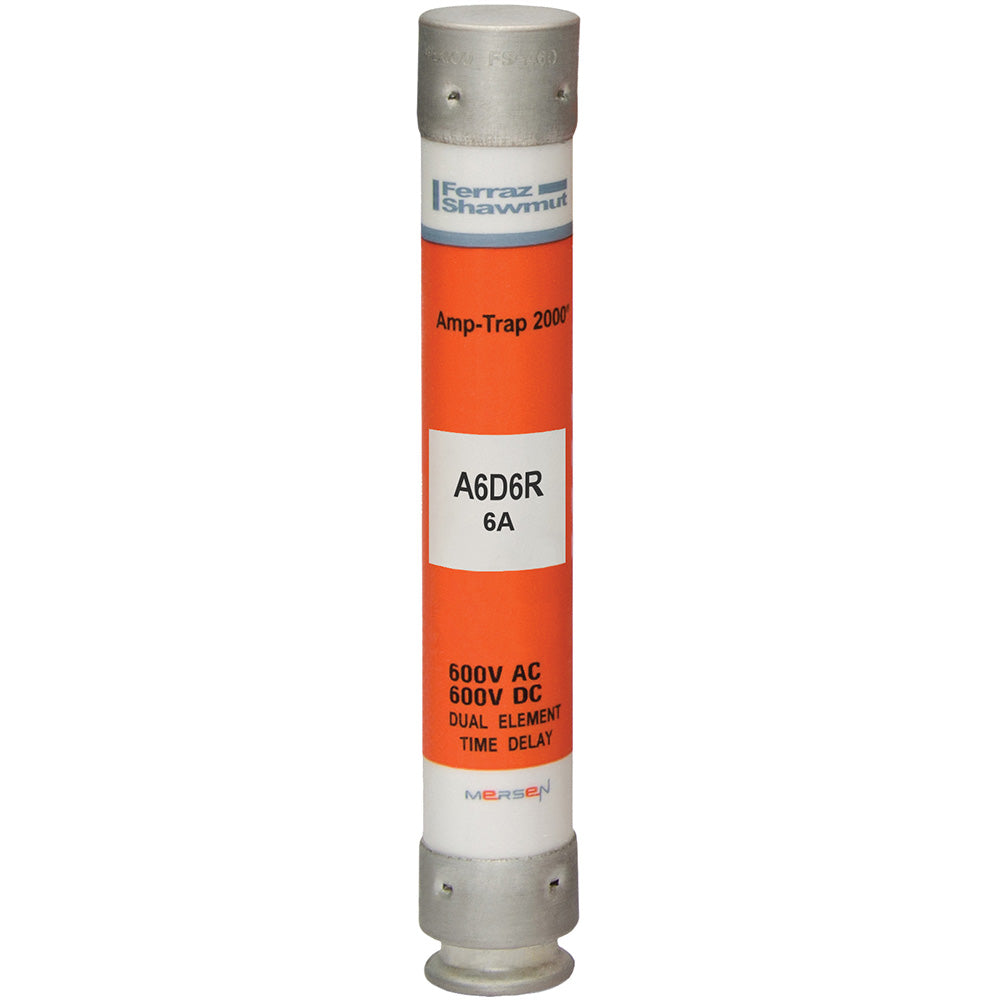

A6D6R is a Mersen Class RK1 time delay fuse rated for 6 amps and 600 volts AC/DC, designed for reliable circuit protection.This fuse features a time-delay characteristic with current limiting capability, suitable for protecting motors and other inductive loads. It has a voltage rating of 600 volts AC and DC, an interrupt rating of 200kA at 600V AC and 100kA at 600V DC, and a clip mounting type. The fuse includes Mersen's SmartSpot indicator for easy status identification.
- Key Specifications
- Amperage: 6 Amps
- Voltage Rating: 600 Volts AC/DC
- Fuse Class: RK1
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200kA AC, 100kA DC
- Mounting Type: Clip
- Fuse Length: 5 inches
- Diameter: 13/16 inches
- SmartSpot Indicator: Yes
- Frequency: 50/60 Hz
- Current Limiting: Yes
Specifications
- Part Number: A6D6R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991753
- GTIN : 00782001991753
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 0.14
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
