Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

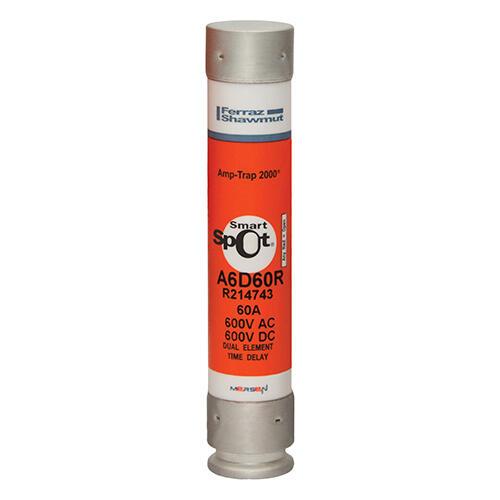

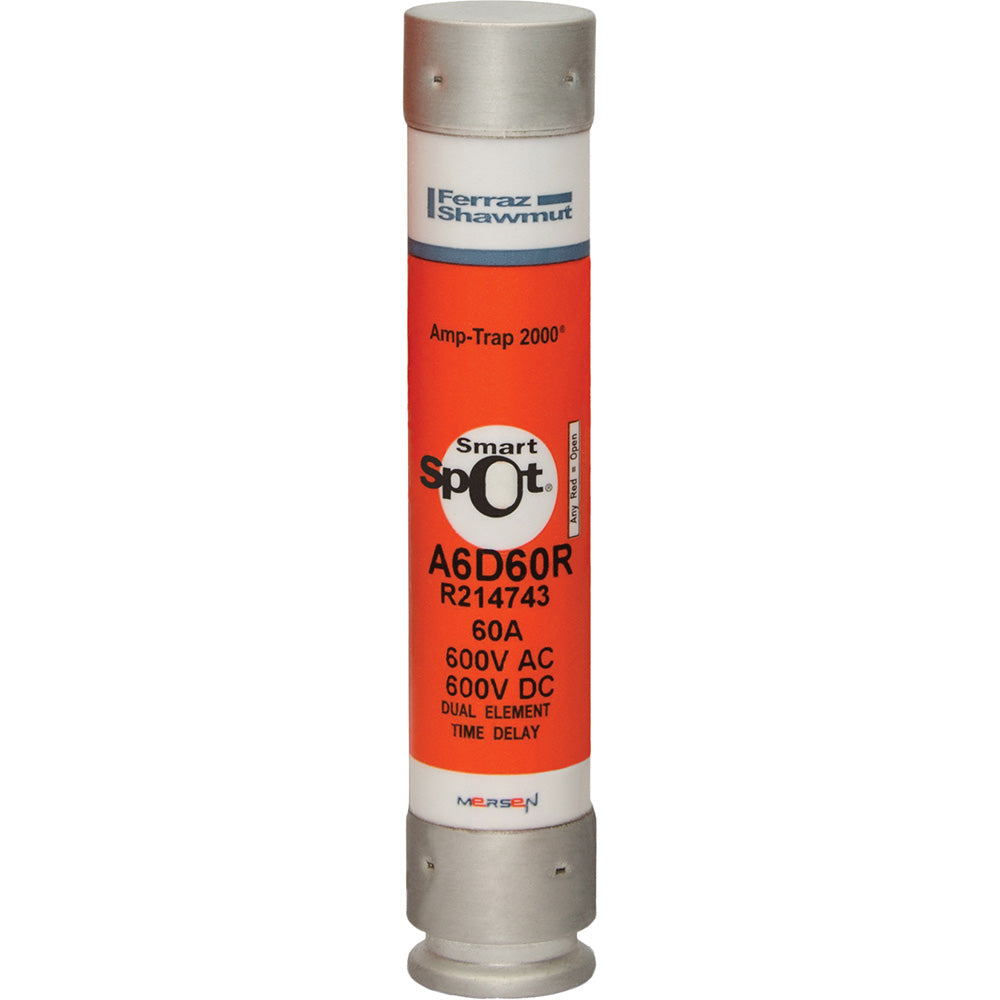

A6D60R
A6D60R is a Mersen Amp-Trap 2000 time-delay fuse rated for 60 amps and 600 volts AC/DC with Class RK1 protection.This fuse features a SmartSpot visual blown fuse indicator and is designed for motor and non-motor load protection with time-delay characteristics to handle motor starting and transformer inrush currents without nuisance opening. It has a clip mounting type and a high interrupt rating of 200 kA DC, suitable for replacing Class H, K, or RK5 fuses.
- Key Specifications
- Amperage: 60A
- Voltage: 600V AC/DC
- Class: RK1
- Type: Time-Delay Fuse
- Series: Amp-Trap 2000 A6D Series
- Mounting: Clip
- Interrupt Rating DC: 200 kA
- Indicator: SmartSpot visual blown fuse indicator
- Insulation Material: PolyTube
- Application: Motor and non-motor load protection
Specifications
- Part Number: A6D60R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 60
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001992040
- GTIN : 00782001992040
- Country of Origin : Mexico
- Dimensions : x 5-1/2" x
- Weight : 5
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
