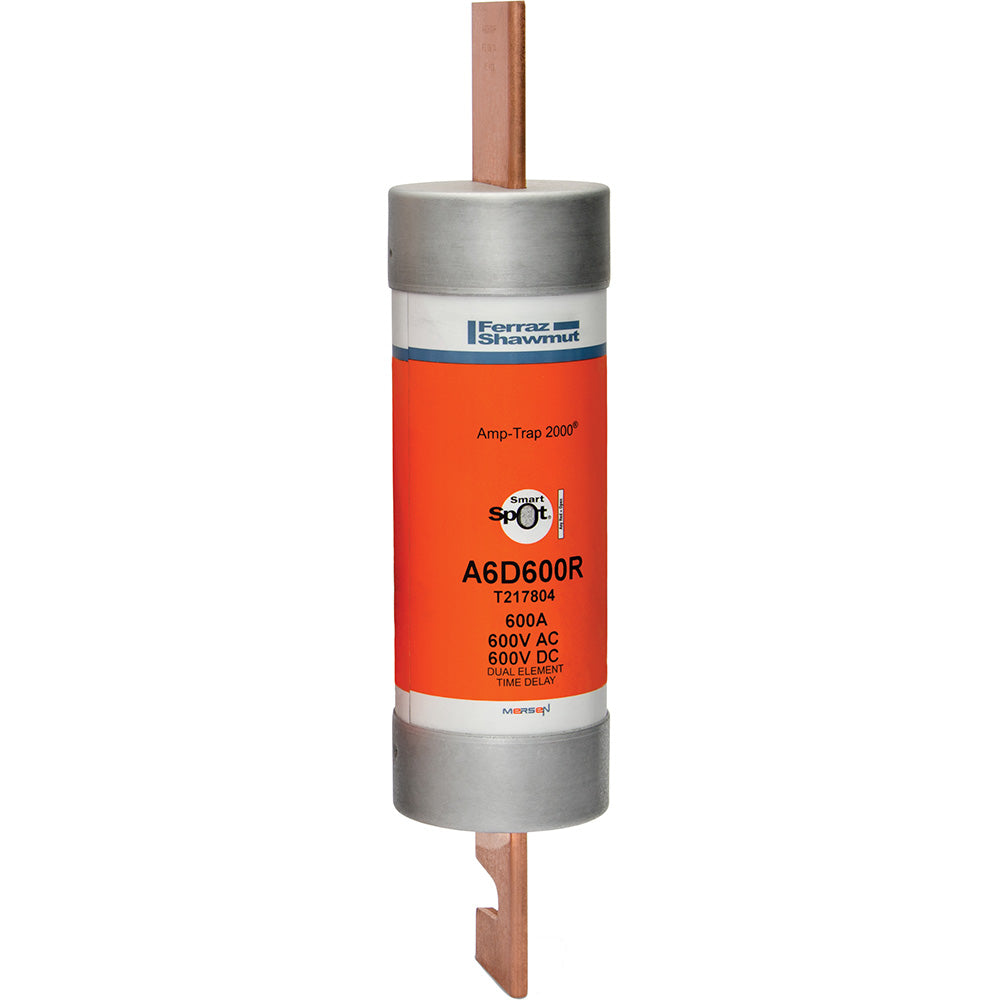

A6D600R - Mersen 600A 600V Class RK1 Time-Delay Fuse with 200kA Interrupt Rating

A6D600R

A6D600R is a Class RK1 time-delay fuse designed for reliable motor starting and branch circuit protection in industrial applications. This fuse features a 600A current rating, 600VAC/VDC dual voltage rating, and a 200kA interrupting rating for robust circuit protection. The fiberglass body provides dimensional stability in harsh environments, and the rejection-style design prevents incorrect replacements. The high-visibility orange label ensures instant brand recognition, and the metal-embossed date and catalog number allow for easy traceability. Engineered for use in motors, transformers, safety switches, and control panels, the A6D600R offers time-delay protection to prevent nuisance tripping during motor inrush and transformer startup. It is UL 248/248-12 and CSA C22.2 certified, making it suitable for a wide range of general-purpose circuits.

• Part Number: A6D600R
• Manufacturer: Mersen
• Amperage: 600A
• Voltage: 600VAC/VDC
• Fuse Class: Class RK1
• Interrupt Rating: 200kA
• Mounting Type: Blade
• Series: Amp-Trap 2000
• Speed/Characteristic: Time-Delay
• Terminal Material: Tin-Plated Copper
• Body Diameter: 3-1/8"
• Certifications: UL 248/248-12, CSA C22.2

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A6D600R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A6D-R
• Voltage : 600
• Amperage : 600
• AIC rating : 200kA@600V
• Diameter : 3.13
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 782001992309
• GTIN : 00782001992309
• Country of Origin : Mexico
• Dimensions : x 13-3/8" x
• Weight : 5
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
