Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

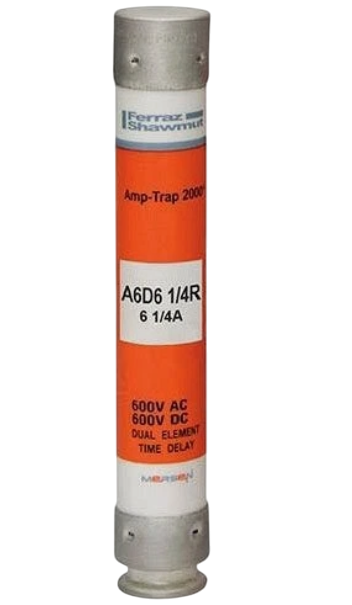

A6D6-1/4R
A6D6-1/4R is a Class RK1 time-delay fuse designed for reliable circuit protection in industrial and commercial power distribution systems. This Mersen Amp-Trap 2000® fuse offers robust performance with a 6.25A current rating and 600V AC/DC voltage rating, making it suitable for a wide range of applications requiring arc flash mitigation and current limiting protection. The A6D6-1/4R features a cartridge body style with ferrule terminals, providing secure mounting and easy replacement. Its time-delay characteristic allows for temporary current surges without nuisance tripping, ensuring uninterrupted operation in demanding environments.
- Part Number: A6D6-1/4R
- Manufacturer: Mersen
- Current Rating: 6.25 A
- Voltage Rating: 600 V AC, 600 V DC
- Fuse Class: RK1
- Interrupt Rating: 200 kA at 600 V AC
- Response Time: Time Delay
- Body Style: Cartridge
- Terminal Type: Ferrule
- Series: Amp-Trap 2000®
- Protection Type: Arc Flash Mitigating
- Approvals: UL 248/248-12, CSA C22.2
Specifications
- Part Number: A6D6-1/4R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 6
- AIC rating : 200kA@600V
- Diameter : 0.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 78200199176
- GTIN : 00782001991760
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 0.14
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
