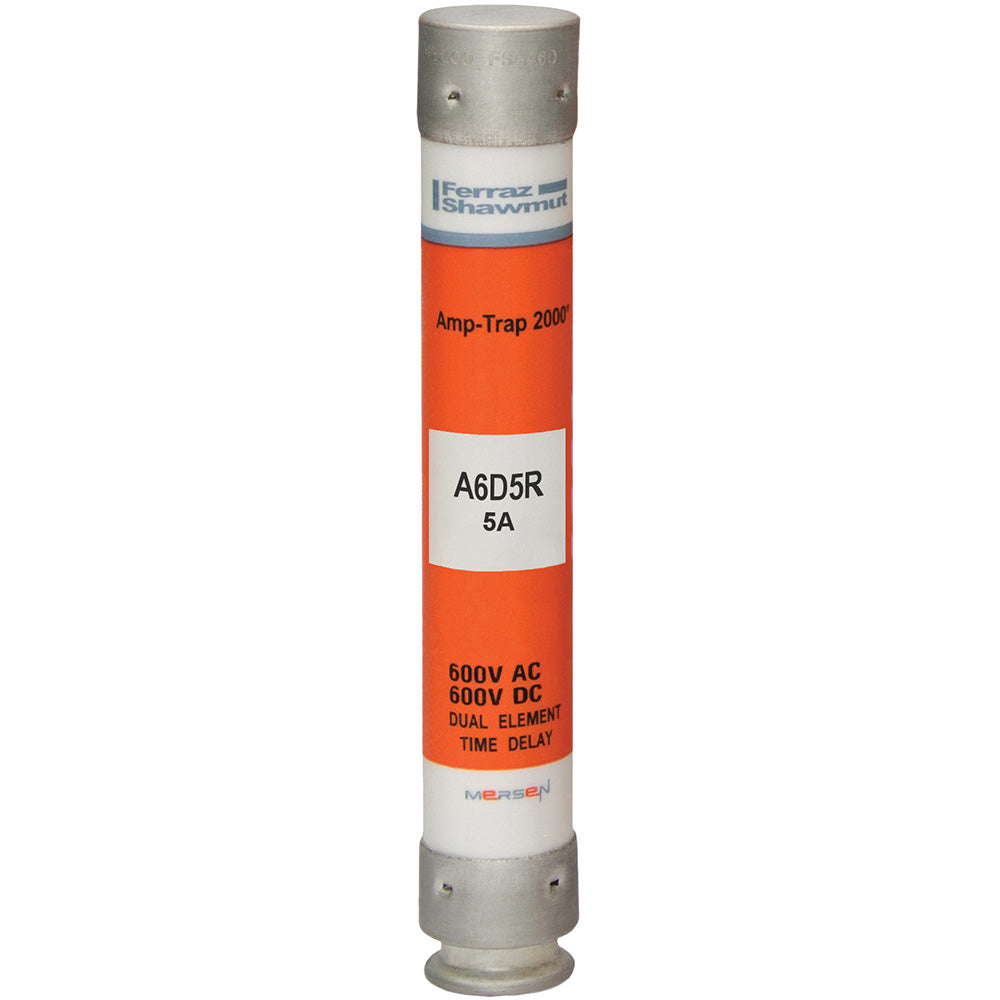

A6D5R - Mersen 5 Amp 600 Volt AC Class RK1 Time Delay Fuse

A6D5R

A6D5R is a 5 Amp, 600 Volt AC Class RK1 time delay fuse from Mersen designed for reliable circuit protection.This Mersen A6D5R fuse features a time-delay characteristic suitable for motor and non-motor loads, providing IEC Type 2 "no damage" protection. It is UL 248/248-12 and CSA C22.2 certified, with a current limiting fiberglass tube construction and a physical size of 13/16 inch diameter by 5 inches length. The fuse offers a 200 kiloamp interrupt rating and is designed to protect mains, feeders, and branch circuits while allowing motor inrush currents.

Key Specifications
• Amperage: 5 Amp
• Voltage Rating: 600 Volt AC/DC
• Fuse Class: RK1
• Speed/Characteristic: Time Delay
• Interrupt Rating: 200 kA
• Physical Size: 13/16 inch diameter x 5 inch length
• Mounting Type: Cylindrical body, ferrule terminal
• Certifications: UL 248/248-12, CSA C22.2
• Series: Amp-Trap 2000®
• Current Limiting: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A6D5R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A6D-R
• Voltage : 600
• Amperage : 5
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782001991739
• GTIN : 00782001991739
• Country of Origin : Mexico
• Dimensions : x 5" x
• Weight : 0.14
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
