Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

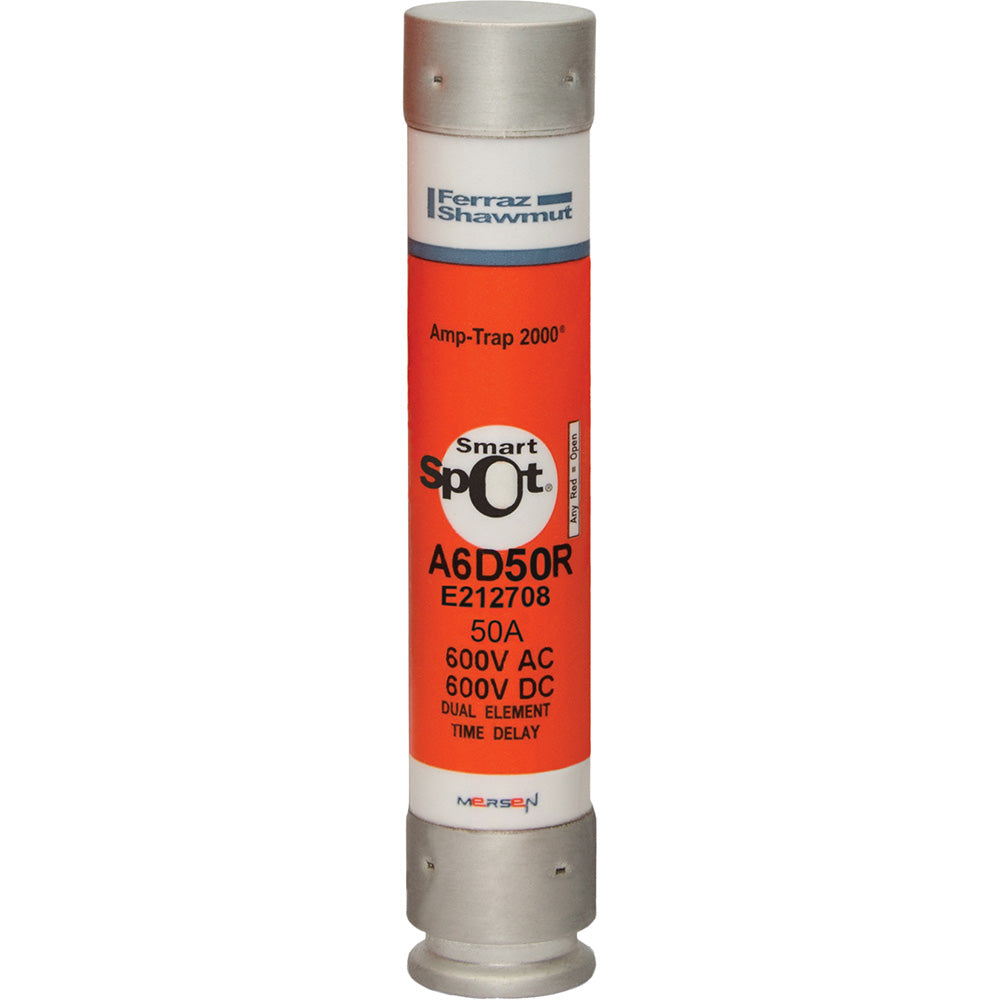

A6D50R
A6D50R is a 50 Amp, 600 Volt AC/DC Class RK1 time delay fuse from Mersen designed for reliable circuit protection.This fuse features a time delay characteristic with Smart Spot technology for easy status indication. It has a physical size of 1 1/16" x 5 1/2" and is UL listed to standard 248-12 and CSA certified. The A6D50R offers an AC interrupting rating of 200,000 AIC and a DC interrupting rating of 100,000 AIC, making it suitable for arc flash energy reduction and preventing replacement errors with its rejection style design.
- Key Specifications
- Amperage: 50 Amps
- Voltage: 600 Volts AC/DC
- Fuse Class: RK1
- Time Delay (Slow Blow)
- Interrupting Rating: 200,000 AIC AC, 100,000 AIC DC
- Physical Size: 1 1/16" x 5 1/2"
- Mounting Type: Clip
- Smart Spot Status Indicator
- UL Listed to Standard 248-12
- CSA Certified to Standard C22.2 No. 248.12
- Rejection Style Design to Prevent Replacement Errors
- Part Number: A6D50R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 50
- AIC rating : 200kA@600V
- Diameter : 1.06
- Class Rating : RK1
- Barrels : 1
- UPC : 782001992033
- GTIN : 00782001992033
- Country of Origin : Mexico
- Dimensions : x 5-1/2" x
- Weight : 5
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
