Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

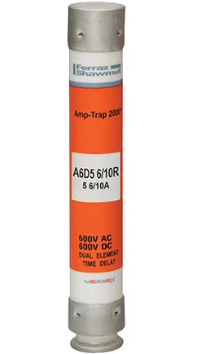

A6D5-6/10R
A6D5-6/10R is a Class RK1 time-delay fuse designed for reliable circuit protection in industrial and commercial applications. This fuse features a 5.6A current rating, dual 600VAC/600VDC voltage rating, and a 200kA interrupting rating for maximum safety and performance. The Amp-Trap 2000® design provides arc flash mitigation, current-limiting action, and easy selectivity for reduced nuisance outages. Its rejection-style body prevents incorrect replacement, and the fiberglass construction ensures durability in harsh environments. Suitable for use in mains, feeders, branch circuits, motors, transformers, and control panels.Key Specifications
- Part Number: A6D5-6/10R
- Manufacturer: Mersen
- Series: A6D-R
- Fuse Type: Class RK1
- Amperage Rating: 5.6A
- Voltage Rating: 600VAC / 600VDC
- Interrupting Rating: 200kA
- Response Time: Time Delay
- Body Style: Cartridge (13/16" x 5")
- Visual Indication: Non-Indicating
- Protection Type: Arc Flash Mitigating, Branch Circuit, Mains, Feeders
- Certifications: UL Listed, IEC Type 2
Specifications
- Part Number: A6D5-6/10R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 5
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991746
- GTIN : 00782001991746
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 5
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
