Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description
A6D450R

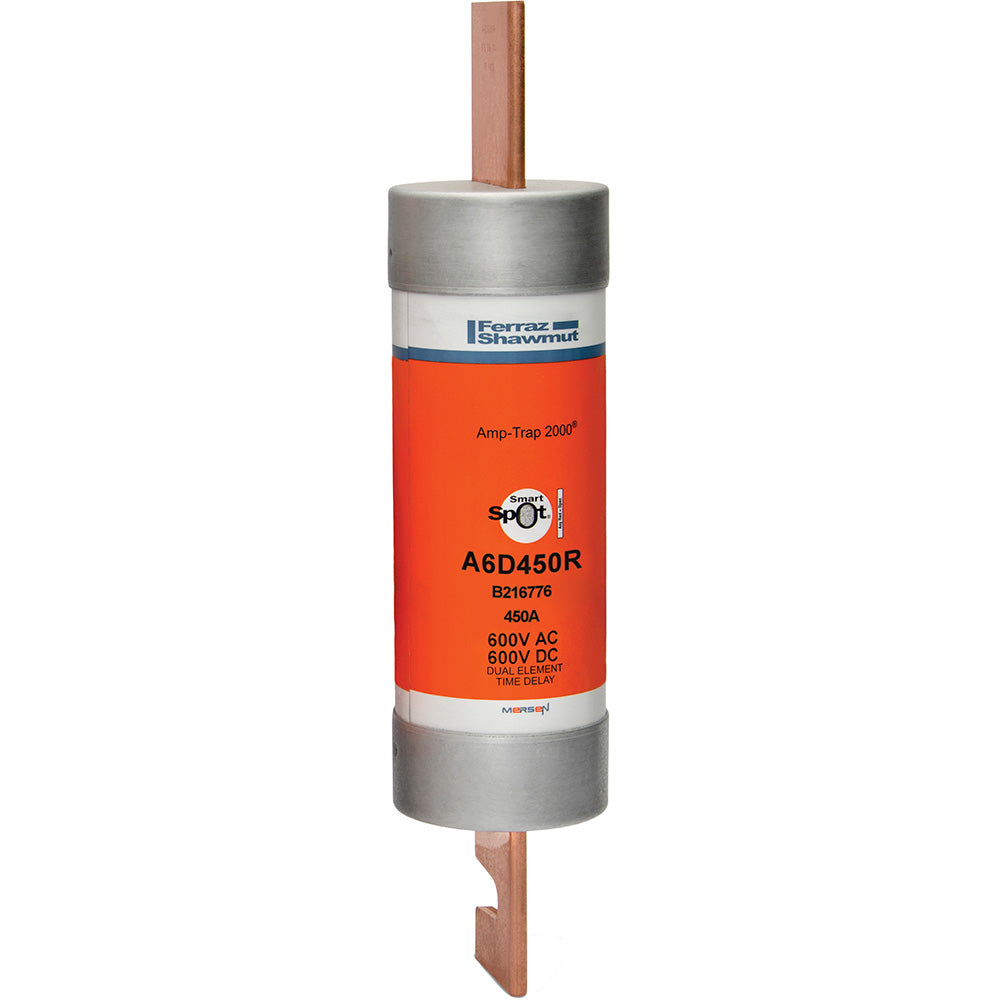

A6D450R is a 450A, 600V AC/DC Class RK1 time delay fuse with Smart Spot visible open indicator, designed for reliable circuit protection in industrial and commercial applications.This Mersen Amp-Trap 2000® fuse features a rejection style design to prevent replacement errors, high interrupting capacity, and is UL Listed and CSA Certified for safety and compliance. The Smart Spot indicator provides visual confirmation of fuse status for easy maintenance and troubleshooting.
- 450A Amperage
- 600V AC/DC Voltage Rating
- Class RK1 Fuse
- Time Delay Type
- Smart Spot Visible Open Indicator
- 200,000A Interrupting Rating (AC)
- 100,000A Interrupting Rating (DC)
- UL Listed to Standard 248-12
- CSA Certified to C22.2 No. 248.12
- Rejection Style Design
- Physical Size: 3 1/8" x 13 3/8"
- Weight: 6.2 lbs
Specifications
- Part Number: A6D450R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 450
- AIC rating : 200kA@600V
- Diameter : 3.13
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001992286
- GTIN : 00782001992286
- Country of Origin : Mexico
- Dimensions : x 13-3/8 in x
- Weight : 3
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
