A6D35R - Ferraz Shawmut Mersen 35A 600V AC/DC Class RK1 Time Delay Fuse

A6D35R

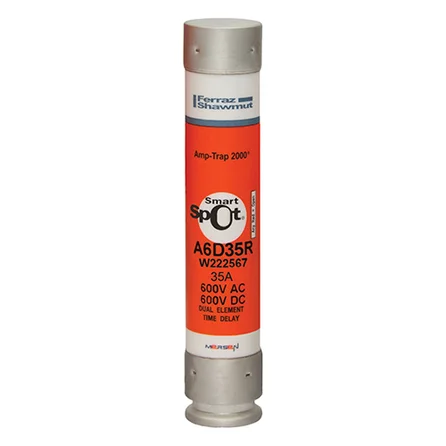

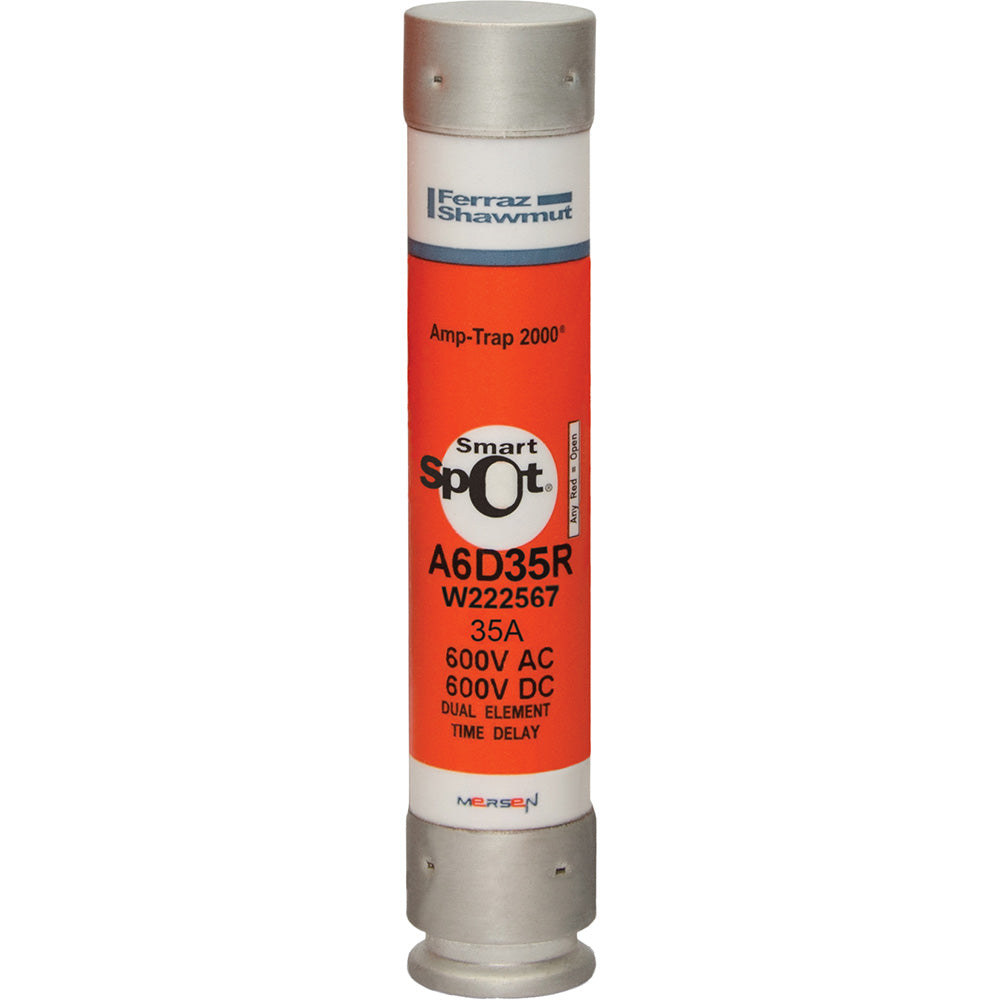

A6D35R is a 35 amp, 600 volt AC/DC Class RK1 time delay fuse from Ferraz Shawmut Mersen designed for reliable circuit protection.This cylindrical fuse features a 5-1/2 inch length and 1-1/16 inch diameter, with a 200kA interrupt rating at AC and 100kA at DC. It includes the Smart-Spot visible open indicator and meets UL 248/248-12 and CSA C22.2 certifications. The A6D35R is part of the Amp-Trap 2000 series providing IEC Type 2 no damage protection for motor and non-motor circuits.

Key Specifications
• Amperage: 35 A
• Voltage Rating: 600 V AC/DC
• Fuse Class: RK1
• Fuse Timing: Time Delay
• Interrupt Rating: 200 kA AC, 100 kA DC
• Fuse Body Type: Cylindrical
• Overall Length: 5-1/2 inches (139 mm)
• Diameter: 1-1/16 inches
• Visible Open Indicator: Smart-Spot
• Certifications: UL 248/248-12, CSA C22.2
• Series: Amp-Trap 2000

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: A6D35R
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A6D-R
• Voltage : 600
• Amperage : 35
• AIC rating : 200kA@600V
• Diameter : 1.06
• Class Rating : RK1
• Barrels : 1

Product Data

• UPC : 782001992002
• GTIN : 00782001992002
• Country of Origin : Mexico
• Dimensions : x 5-1/2" x
• Weight : 5
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
