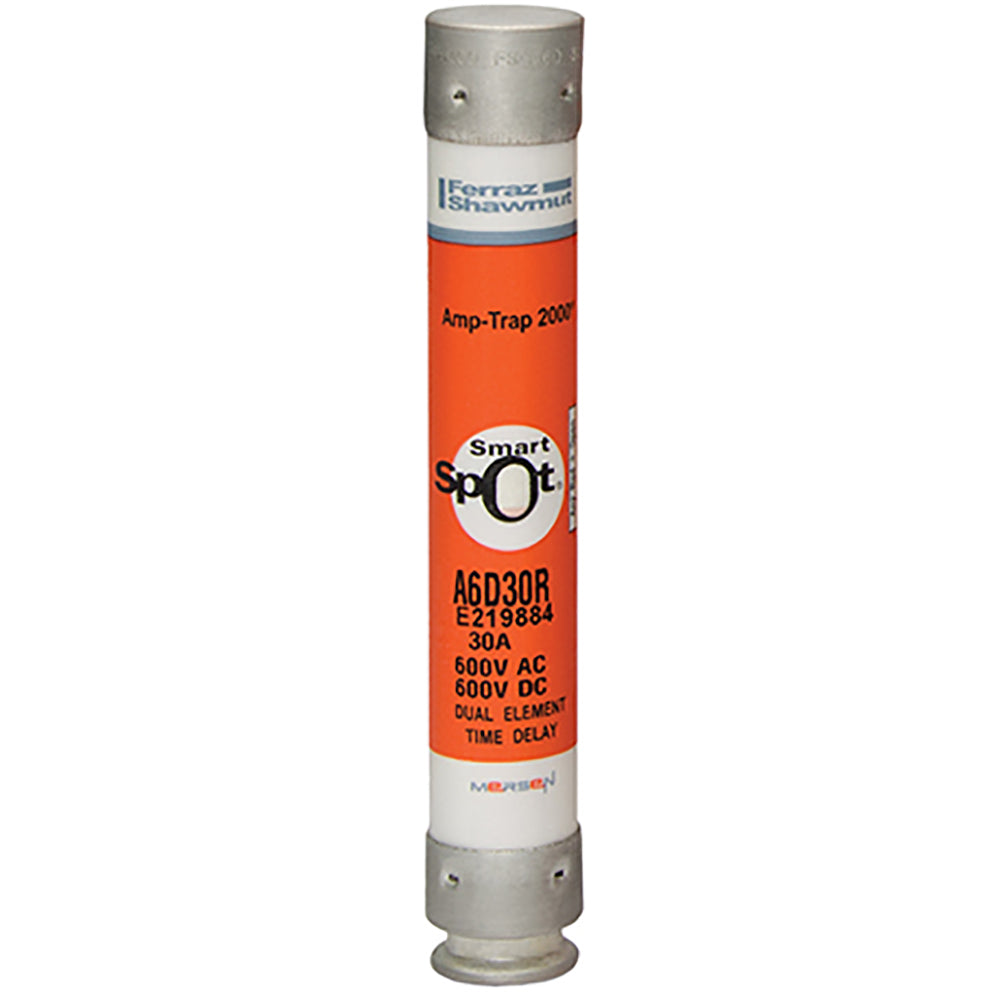

A6D30R - Mersen 30A 600V Class RK1 Time Delay Fuse with Smart Spot Indicator

A6D30R

A6D30R is a 30 Amp, 600 Volt AC/DC Class RK1 time delay fuse from Mersen featuring a Smart Spot visual blown fuse indicator.This fuse is designed for reliable protection with time-delay characteristics to handle harmless inrush currents such as motor starting and transformer energizing without nuisance opening. It has a cylindrical body size of 13/16 inch diameter by 5 inches length, a rejection style design to prevent replacement errors, and is UL listed to standard 248-12 and CSA certified. The fuse offers a high interrupting rating of 200,000 AIC AC and 100,000 AIC DC, making it suitable for arc flash energy reduction applications.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 600 Volts AC/DC
• Fuse Class: RK1
• Time Delay: Yes
• Interrupting Rating: 200,000 AIC AC, 100,000 AIC DC
• Physical Size: 13/16 inch diameter x 5 inch length
• Smart Spot visual blown fuse indicator
• Rejection style design to prevent replacement errors
• UL Listed to Standard 248-12, UL File E2137
• CSA Certified to Standard C22.2 No. 248.12
• Recommended for arc flash energy reduction
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A6D30R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A6D-R
• Voltage : 600
• Amperage : 30
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782001991869
• GTIN : 00782001991869
• Country of Origin : Mexico
• Dimensions : x 5" x
• Weight : 5
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
