Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

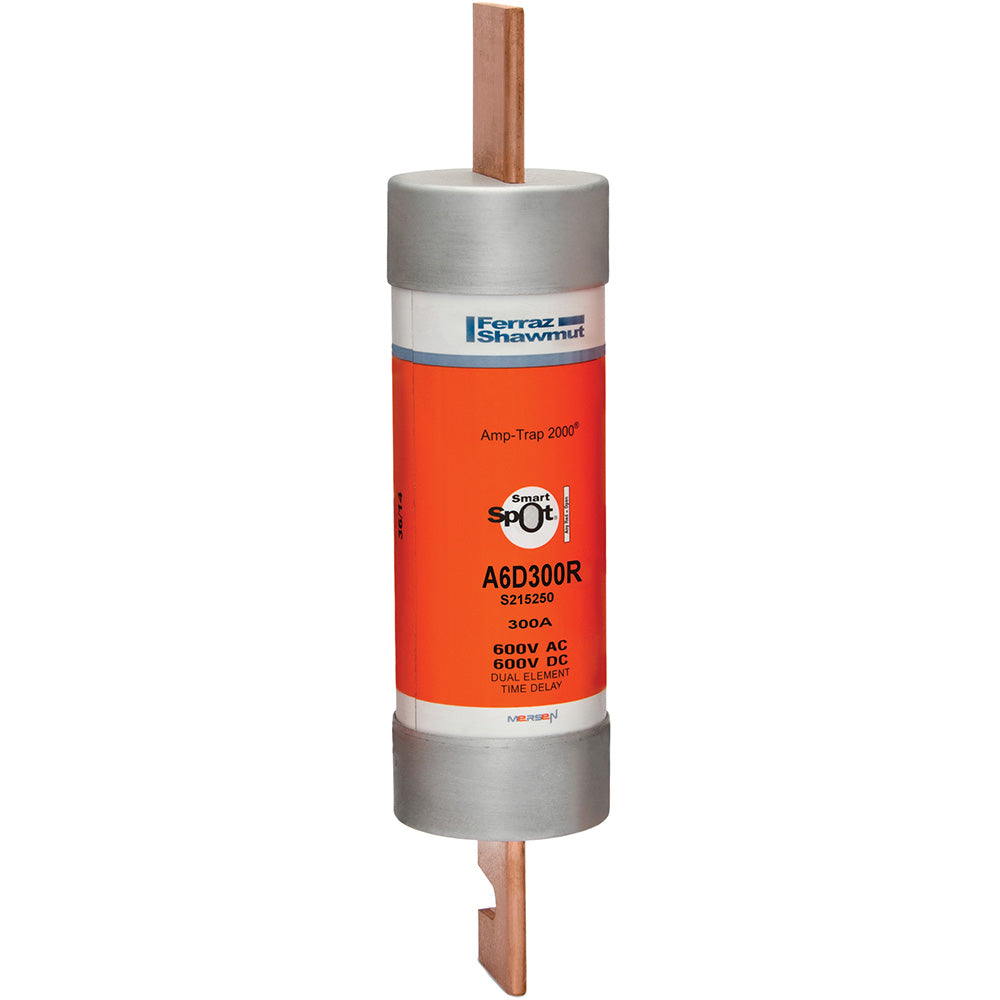

A6D300R
A6D300R is a Mersen 300 Amp, 600 Volt Class RK1 time delay fuse from the Amp-Trap 2000 series designed for reliable circuit protection.This fuse features current limiting capability with a 200 kA interrupt rating and SmartSpot indicator for easy status verification. It is UL 248/248-12 and CSA C22.2 certified, suitable for AC and DC applications, and measures 2 9/16 inches in diameter by 11 5/8 inches in length.
- Key Specifications
- Amperage: 300 A
- Voltage Rating: 600 V AC/DC
- Fuse Class: RK1
- Speed/Characteristic: Time Delay
- Interrupt Rating: 200 kA
- Series/Frame: Amp-Trap 2000 (A6D-R)
- Physical Size: 2 9/16" diameter x 11 5/8" length
- SmartSpot Indicator: Yes
- Certifications: UL 248/248-12, CSA C22.2
- Mounting Type: Cartridge Fuse
- RoHS Compliant: Yes
- Part Number: A6D300R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 300
- AIC rating : 200kA@600V
- Diameter : 2.56
- Class Rating : RK1
- Barrels : 1
- UPC : 782001992231
- GTIN : 00782001992231
- Country of Origin : Mexico
- Dimensions : x 11-5/8" x
- Weight : 2
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
