Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

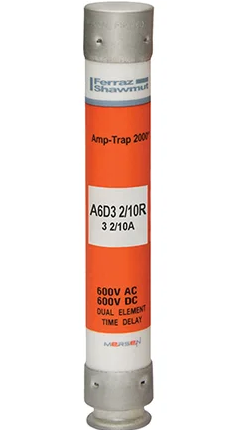

A6D3-2/10R
A6D3-2/10R is a 3.2 Amp, 600 Volt Class RK1 time delay fuse designed for reliable circuit protection.This fuse features a time-delay characteristic suitable for motor starting and transformer inrush currents, preventing nuisance openings. It is dual rated for 600 VAC and 600 VDC applications with a high interrupting rating of 200,000 AIC at 600 VAC and 100,000 AIC at 600 VDC. The fuse body is fiberglass for dimensional stability and includes a solid state SmartSpot visual blown fuse indicator. It is UL Listed and CSA Certified for mains, feeders, and branch circuit protection, providing arc flash mitigation and enhanced safety.
- Key Specifications
- Amperage: 3.2 Amp
- Voltage Rating: 600 VAC / 600 VDC
- Fuse Type: Class RK1, Time Delay
- Interrupting Rating: 200,000 AIC at 600 VAC, 100,000 AIC at 600 VDC
- Fuse Size: 13/16" x 5"
- Body Material: Fiberglass
- Visual Indicator: SmartSpot blown fuse indicator
- Certifications: UL Listed, CSA Certified
- Protection: Arc Flash Mitigating, Branch Circuit, Mains, Feeders
Specifications
- Part Number: A6D3-2/10R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991692
- GTIN : 00782001991692
- Country of Origin : Mexico
- Dimensions : x 5 in x
- Weight : 25
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
