Product Info
- Manufacturer:Mersen
- Sub-Category:Low Voltage Fuse
Description

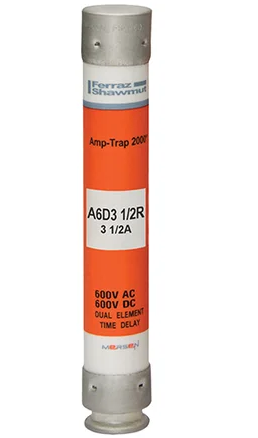

A6D3-1/2R
A6D3-1/2R is a Mersen Amp-Trap 2000 Class RK1 time delay power fuse rated for 3.5 amperes at 600 volts AC/DC with a cylindrical fiberglass body measuring 13/16 inch diameter by 5 inches in length. This current-limiting fuse features arc flash mitigation technology and a SmartSpot visual blown fuse indicator for easy identification of fuse status. The rejection-style design prevents replacement errors when used with recommended fuse blocks, and the time-delay characteristic accommodates motor starting and transformer inrush currents without nuisance tripping.
- Amperage Rating: 3.5 A
- Voltage Rating: 600 VAC / 600 VDC
- UL Class: RK1
- Response Time: Time Delayed
- Physical Size: 13/16 inch diameter x 5 inches length
- Body Type: Cylindrical fiberglass
- Terminal Type: Ferrule
- Interrupting Rating: 200,000 AIC at 600VAC
- DC Interrupting Rating: 100,000 AIC
- Certifications: UL Listed, CSA Certified
- Standards: UL 248/248-12, CSA C22.2
- Protection Applications: Mains, Feeders, Branch Circuit
Specifications
- Part Number: A6D3-1/2R
- Manufacturer : Mersen
- Brand : Mersen
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 3
- AIC rating : 200kA@600V
- Diameter : 0.81
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001991708
- GTIN : 00782001991708
- Country of Origin : Mexico
- Dimensions : x 5" x
- Weight : 0.14
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
