Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
A6D225R

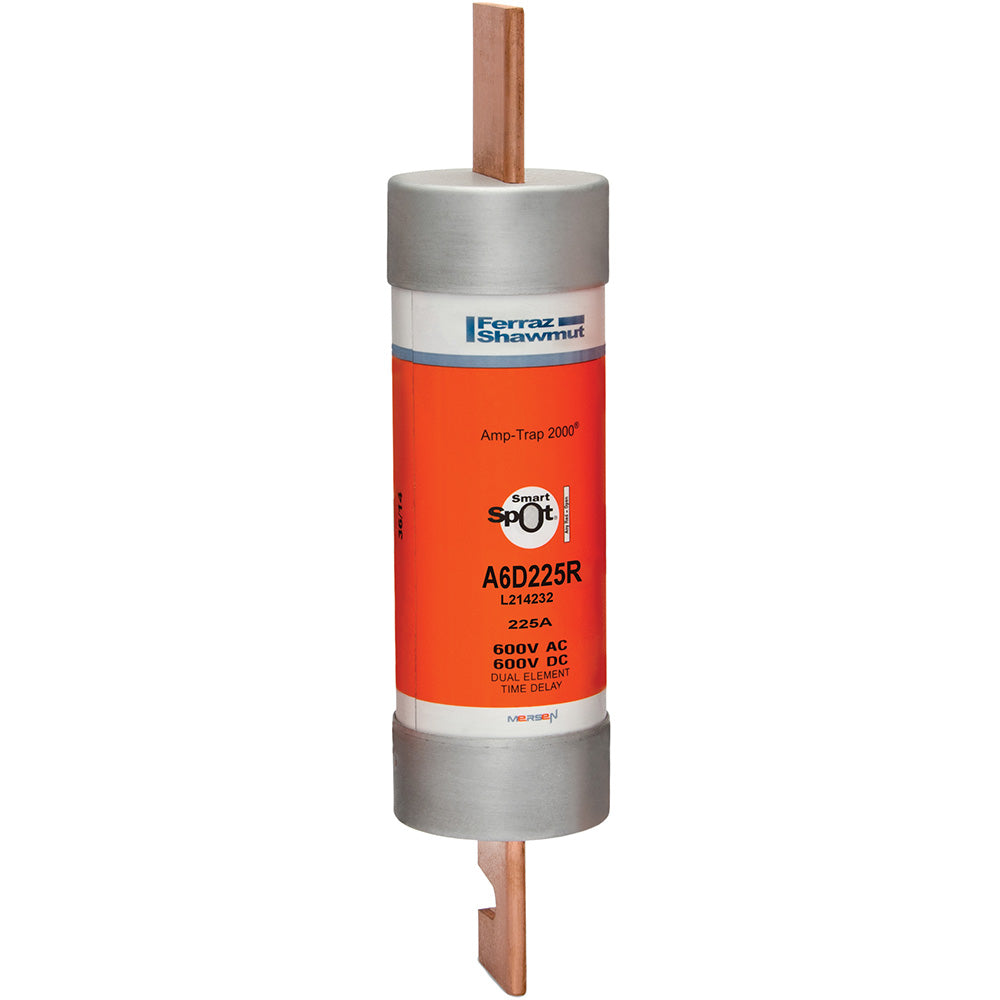

A6D225R is a Ferraz Shawmut Mersen Class RK1 time-delay fuse rated for 225 amps and 600 volts AC/DC with SmartSpot indicator.This A6D series fuse features a blade design with a visible open indicator (SmartSpot) and Amp-Trap 2000 technology for reliable circuit protection. It is UL Class RK1 rated, suitable for general purpose and motor circuit applications, with a high interrupting rating of 200kA AC and 100kA DC. The fuse measures 2 9/16 inches in diameter and 11 5/8 inches in length, designed for single-pole mounting.
- Key Specifications
- Amperage: 225A
- Voltage Rating: 600VAC/DC
- Fuse Class: RK1
- Time-Delay Type
- Poles: 1
- Mounting Type: Blade
- Interrupting Rating: 200kA AC, 100kA DC
- SmartSpot Visible Open Indicator
- Series: A6D
- Dimensions: 2 9/16" diameter x 11 5/8" length
- Certifications: UL 248/248-12, CSA C22.2
Specifications
- Part Number: A6D225R
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Amp-Trap 2000
- Type : A6D-R
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Diameter : 2.56
- Class Rating : RK1
- Barrels : 1
Product Data
- UPC : 782001992217
- GTIN : 00782001992217
- Country of Origin : Mexico
- Dimensions : x 11-5/8 in x
- Weight : 2
- Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
