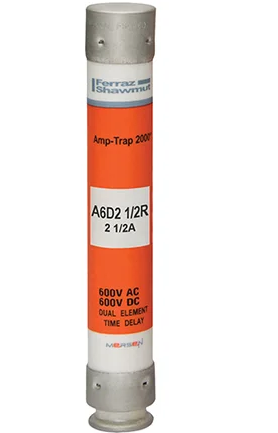

A6D2-1/2R - Mersen 2.5 Amp 600V Class RK1 Time Delay Fuse

A6D2-1/2R

A6D2-1/2R is a Mersen 2.5 Amp, 600 Volt Class RK1 time delay fuse designed for reliable circuit protection.This fuse features a time-delay trip class suitable for motor starting and transformer inrush currents, providing current-limiting protection with a 200,000 AIC interrupt rating at 600 VAC and 100,000 AIC at 600 VDC. It has a cylindrical fiberglass body measuring 13/16" x 5" and is UL listed and CSA certified. The fuse is arc flash mitigating and designed for mains, feeders, and branch circuit protection.

Key Specifications
• Amperage Rating: 2.5 Amp
• Voltage Rating: 600 VAC / 600 VDC
• Fuse Class: RK1
• Trip Type: Time Delay
• Interrupt Rating: 200,000 AIC @ 600 VAC, 100,000 AIC @ 600 VDC
• Fuse Size: 13/16" x 5"
• Body Material: Fiberglass
• Certifications: UL Listed, CSA Certified
• Mounting Type: Clip
• Protection Type: Arc Flash Mitigating, Branch Circuit, Mains, Feeders
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: A6D2-1/2R
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : A6D-R
• Voltage : 600
• Amperage : 2
• AIC rating : 200kA@600V
• Diameter : 0.81
• Class Rating : RK1
• Barrels : 1



Product Data

• UPC : 782001991661
• GTIN : 00782001991661
• Country of Origin : Mexico
• Dimensions : x 5" x
• Weight : 0.14
• Certification : CSA C22.2 No. 248.12, DC UL 248, UL 248-12 File E2137
